Floor deck roll forming machine for U.K.

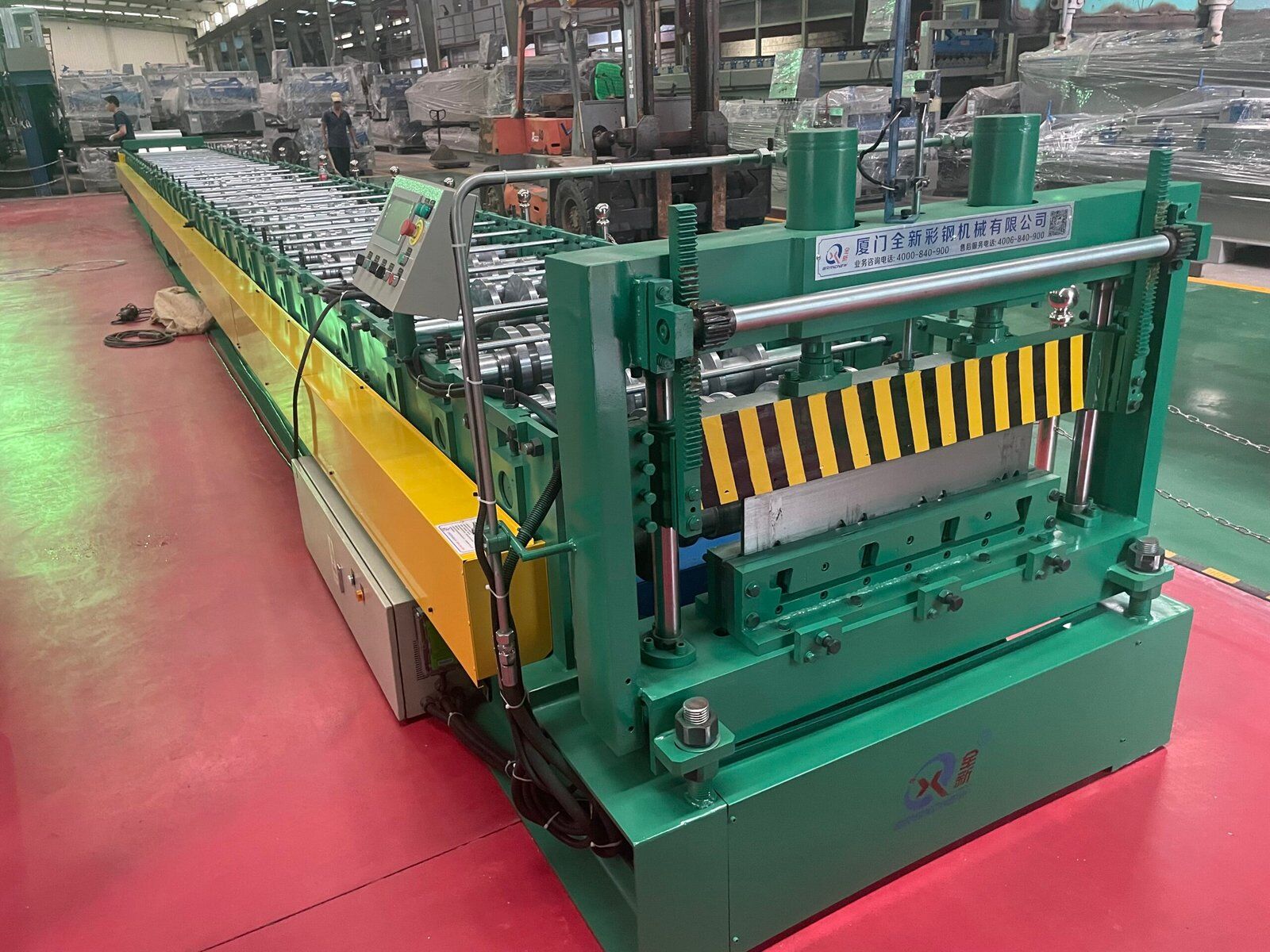

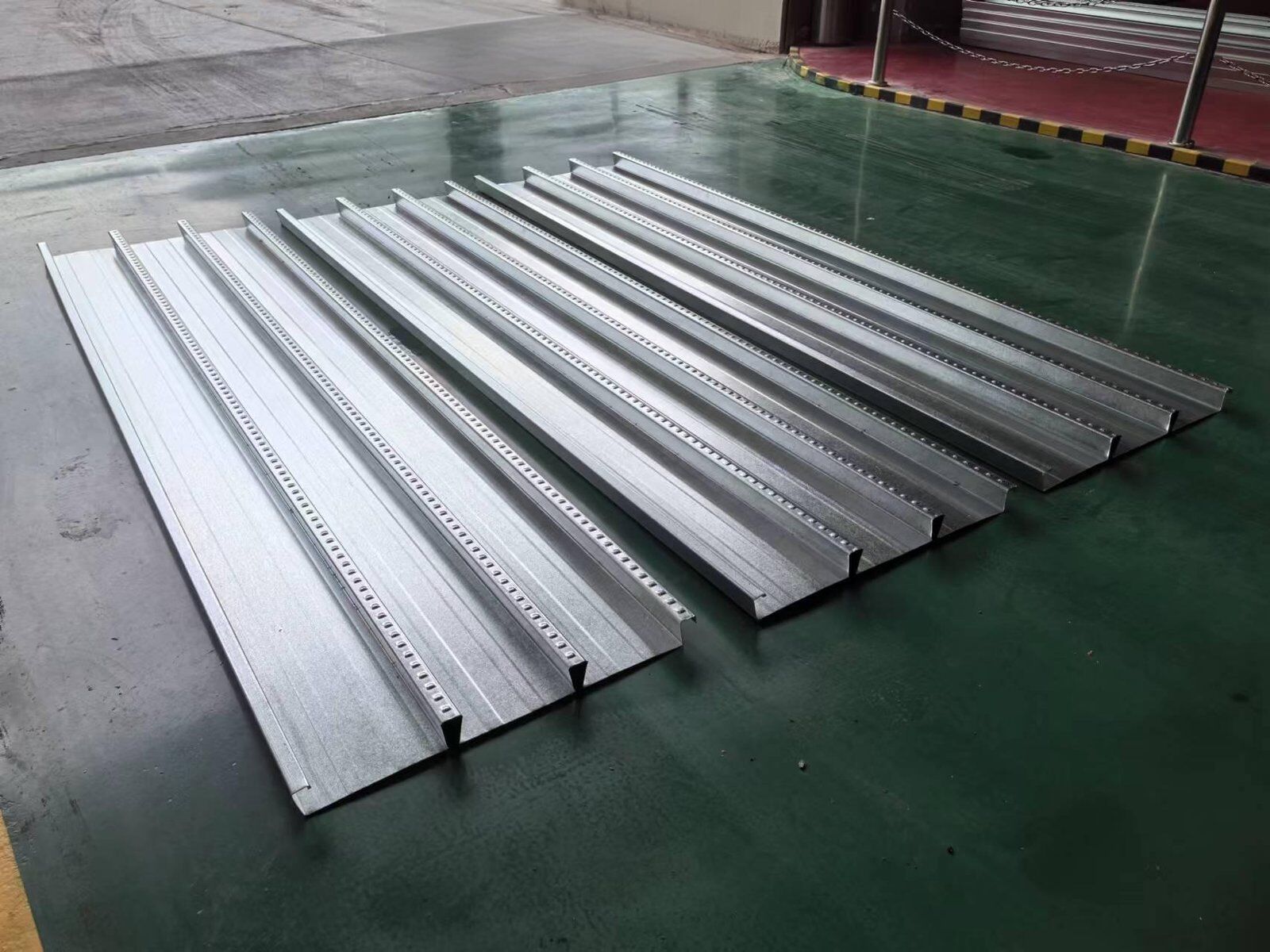

Beenew’s floor decking roll forming machine for the UK is designed for the efficient production of R51+™ series floor decking. Popular in the UK market, our machine’s precise roll forming process ensures that the produced decking combines excellent structural performance with flexible application characteristics. The R51+™ floor decking, as a traditional embedded profile, is highly favored in multi-story building projects in UK city centers. Its unique advantages effectively reduce structural footprint and floor height, providing comprehensive support for architectural design and construction.

Advantages

After being precisely processed by Beenew’s floor decking machine, R51+™ floor decking exhibits multiple core advantages, excelling in structural efficiency, construction flexibility, and safety certifications, comprehensively meeting the needs of building projects:

1. Ultra-thin structure, space optimization: With a minimum thickness of only 102 mm, the required floor slab thickness is relatively thin to meet the typical 1-hour fire resistance rating, significantly reducing structural footprint and floor height, providing more possibilities for interior space design.
2. High-efficiency steel, controllable cost: The product undergoes professional structural optimization to maximize the structural efficiency of steel, minimizing steel waste while ensuring load-bearing capacity and helping projects optimize costs.
3. Flexible construction, strong adaptability: The 150mm groove spacing design provides ample flexibility for stud placement, adapting to different construction scenarios and process requirements, improving construction efficiency.
4. Diverse options, wide compatibility: Supports TAB-Deck™ fiber-reinforced concrete options, allowing flexible selection based on specific project performance requirements, further expanding the product’s application range.
5. Authoritative certification, safe and reliable: The product has passed CE/UKCA dual authoritative certifications, meeting international standards in quality, safety, and compliance, providing a solid guarantee for project safety.



Parameters

The R51+™ floor decking produced by this floor decking forming machine offers diverse options in key parameters such as thickness, specifications, and steel grade, precisely matching the design needs of different projects and providing designers with greater flexibility.



Floor deck thickness (precisely machined)

0.8 mm

0.9 mm

1.0 mm

1.2 mm



Specifications

Coverage width: 600 mm

Profile depth: 52 mm

Steel Grade

Two cost-effective steel grades are available to meet different load-bearing and structural strength requirements:

S350

S450



Surface Treatment and Material Options: A wide range of surface treatments and materials are available to extend product lifespan for different usage environments and durability requirements:

Standard treatment: Galvanized (Z275), providing excellent rust resistance and suitable for general building environments.

Upgrade option: Optional high-durability coating (ZM310), suitable for humid and highly corrosive environments, further enhancing rust and weather resistance.

Material options: Custom low-carbon steel is available, balancing environmental protection and structural performance requirements.



 Application Scenarios

R51+™ floor decking produced by the Floor Decking Roll Forming Machine, with its ultra-thin structure, efficient steel utilization, and flexible adaptability, is particularly suitable for multi-story building projects in city centers. It effectively solves problems such as limited building space and strict height restrictions in city centers, while meeting core requirements such as fire resistance and load-bearing capacity, making it an ideal floor decking choice for commercial complexes, office buildings, and multi-story residential projects.



For more information on the equipment’s production efficiency, customization capabilities, and application details of R51+™ floor decking, please feel free to contact us. We will provide you with professional solutions and technical support.
