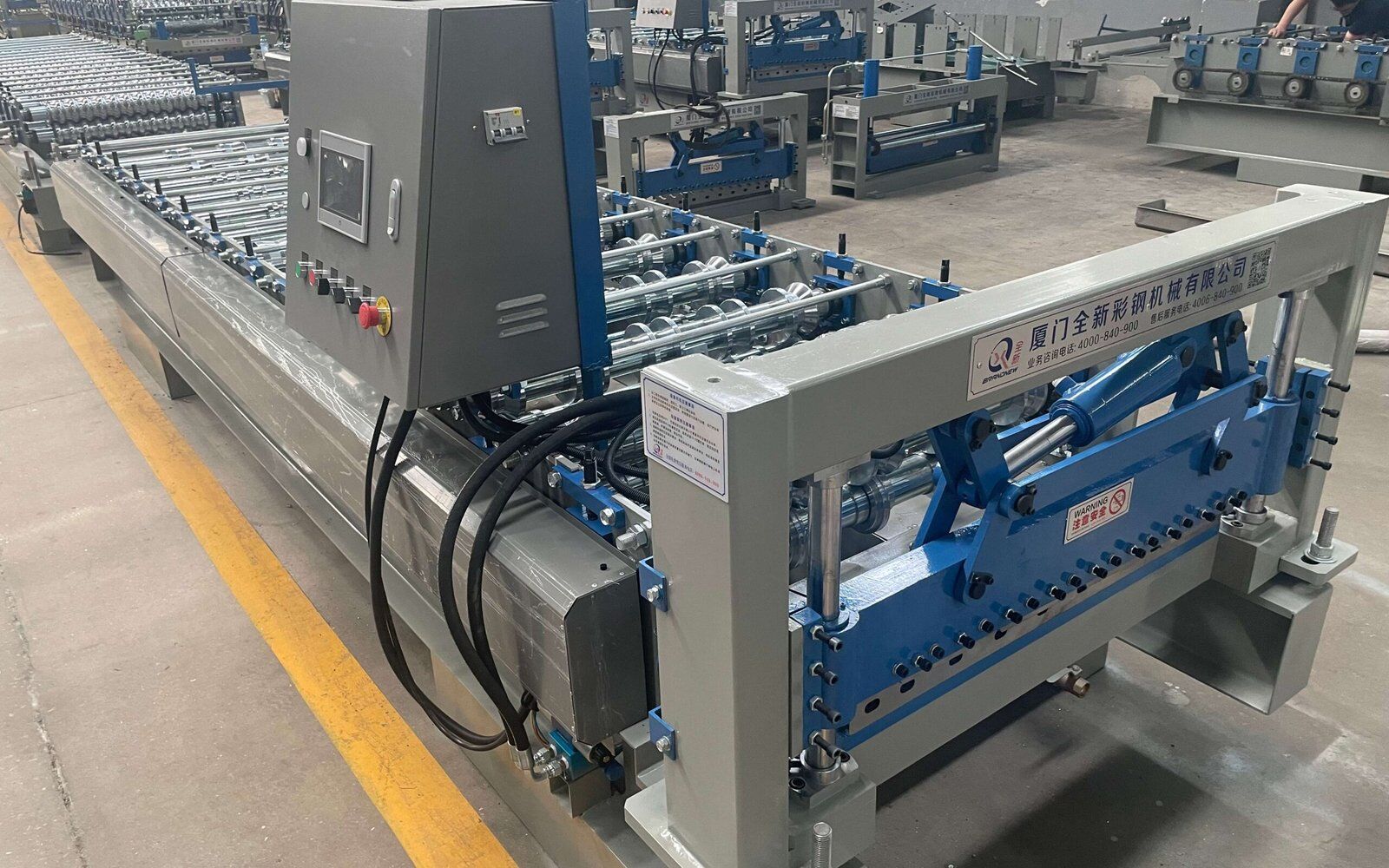

IBR Making Machine
Good Durability and Precision

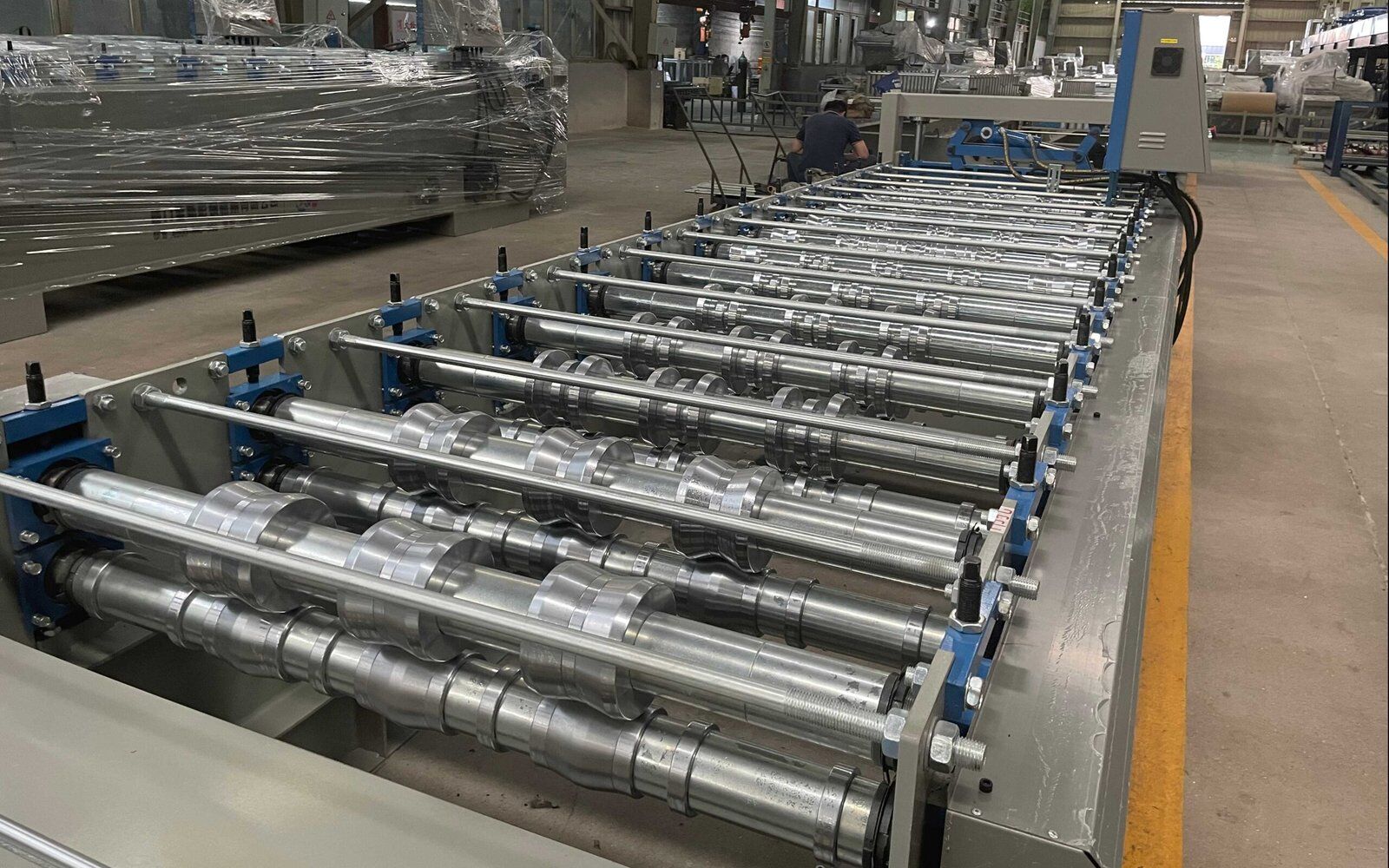

At the heart of the Beenew ibr making machine is a robust assembly of solid shafts and hard Chrome coated rollers. These features not only ensure exceptional durability but also provide unparalleled resistance to damage and rust. The hard Chrome coating adds an extra layer of protection, guaranteeing that the rollers maintain their integrity and performance over extended periods of use.
Advanced PLC Control System
One of the standout features of this machine is its advanced Programmable Logic Controller (PLC) system. This system automates the control of cutting lengths and production quality, ensuring consistent and precise output every time. With the PLC system, you can easily program and monitor the machine’s operations, reducing the need for manual intervention and minimizing the risk of errors.
High-Quality Cutting Blades
The cutting blades of the ibr roof sheet making machine are crafted from Cr12 material, renowned for its hardness and wear resistance. This ensures that the blades maintain their sharpness and effectiveness, even after extensive use. The Cr12 material provides a reliable and efficient cutting process, delivering clean, accurate cuts that meet the highest standards of quality.
The IBR Making Machine is not just a piece of equipment; it’s a commitment to excellence and reliability in roof panel manufacturing. With its robust construction, advanced automation, and superior cutting technology, this machine is set to become an indispensable asset in your production line.
Main Machine Parameters
| Item | Value |
| Driving Motor | 5.5KW |
| Forming Station | 12 |
| Roller Material | 45# steel |
| Shaft Diameter | 75mm |
| Shaft Material | 45# steel |
| Pump Motor | 3KW |
| Frame Type | Common weld wall |
| Cutting Type | Hydraulic curving |
| Control System | PLC |
| Main Electric Parts Brand | Simenz, Delta, Omron or Schneider |
| Cutting Length Precision | ±2mm |
| Machine Dimension | 8300*1450*1650mm |
| Electric Standard | 380V/50HZ/3Ph or customized |
| Paint Color | Grey White+bule or customized |
