Metal Roofing Machine

Metal Roofing Machine

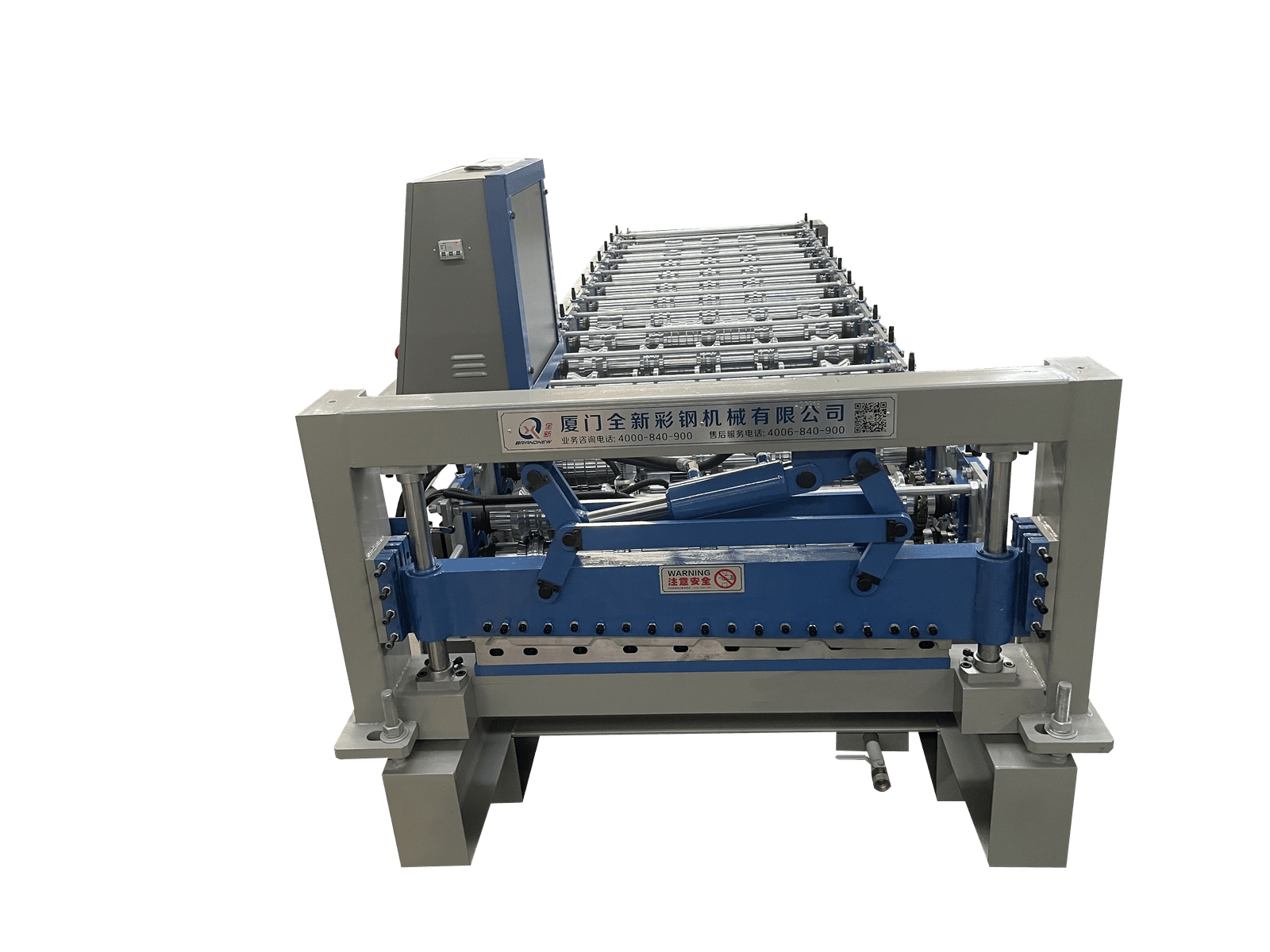

Beenew high-speed roofing tile roll forming machine is engineered for continuous precision in shaping and pressing stepped tile sheets. Featuring adjustable step lengths and customizable depth settings, this advanced equipment delivers efficient production speeds of 25-30 meters per minute.

Like our wall sheet roll forming systems, this roof tiling machine is backed by multiple patented technologies, ensuring innovation and reliability. We also prioritize timely delivery to meet urgent project demands.

As a leading manufacturer of roof tile machinery, Beenew specialize in producing premium-quality tile-making machines tailored for both commercial and residential applications. Our wholesale roof tile equipment combines user-friendly operation with exceptional durability and high-performance output. Designed for maximum structural integrity, each machine integrates cutting-edge safety features to ensure operator protection. Committed to excellence, we take pride in offering industry-leading products and services, solidifying our position as a trusted partner for businesses worldwide.

This metal roofing machine emphasizes technical specifications, innovation, and customer-centric values while maintaining clarity and professionalism.

Features

Raw Materials for Roof Tile Machine
Material Type: Color-coated steel, Aluminum sheet
Thickness: 0.4–0.6 (mm)
Yield Strength: 230–350 MPa (adjustable)
Width: 1200, 1220, 1250 (mm)

Components and Parameters

Production Line Components and Parameters of Metal Roofing Machine

No.	Content	Description
1	Decoiler	5t/8t/10t/15t Motor/hydraulic motor/passive(optional)
2	Filming covering device	optional
3	Front shear	optional
4	Lubricating device	no need

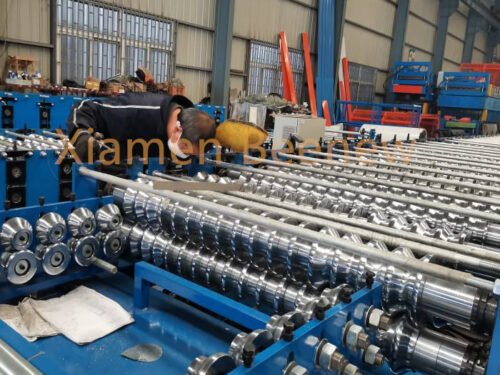

5	Roll forming system	individual standing column structure
6	Safety cover	optional
7	Step pressing unit	Step length, depth, head & end length is adjustable

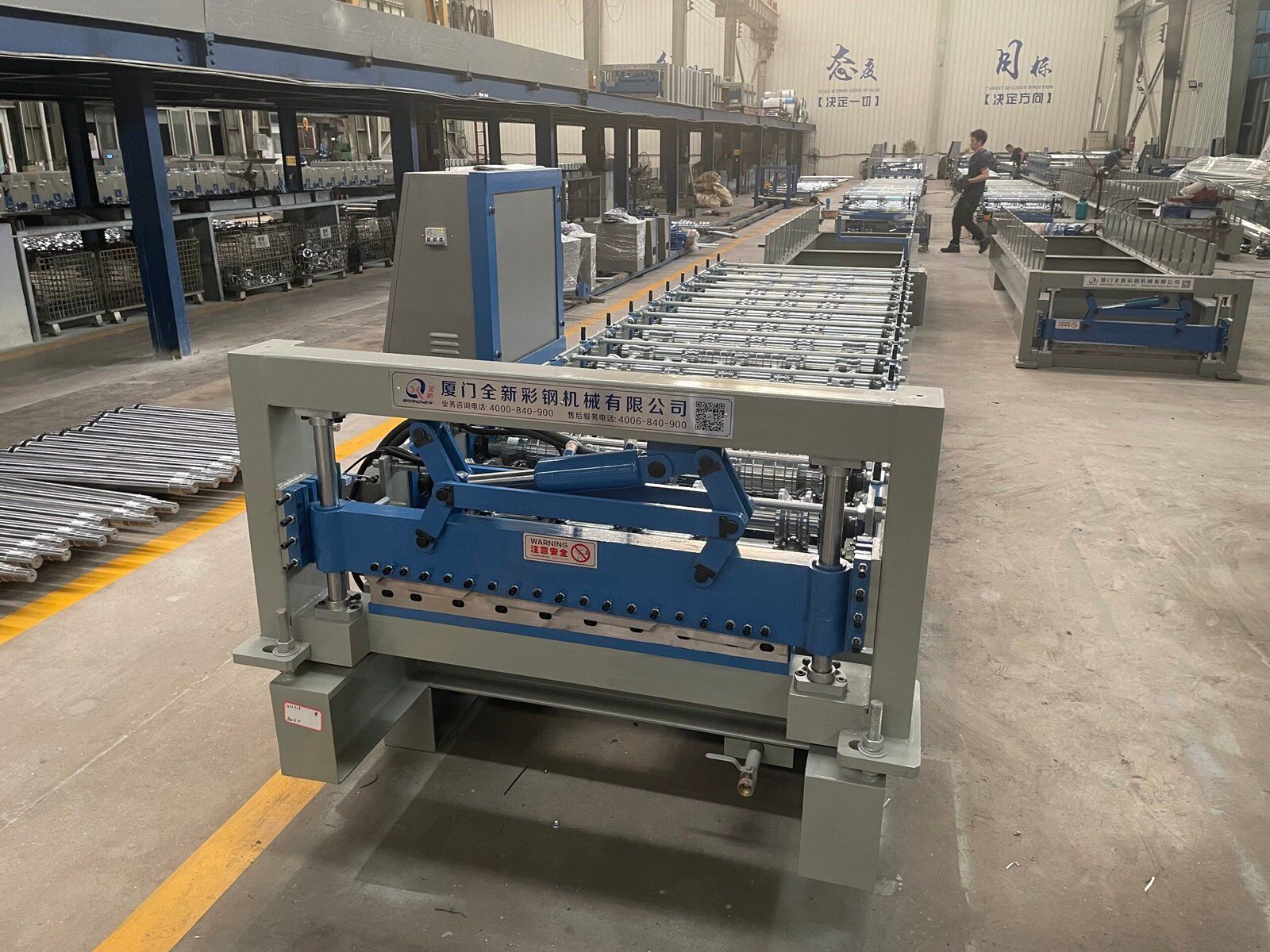

8	Post cutting	hydraulic
9	Output System / Stackmaster	Manual supporter/Automatic Stacker(optional)
		Output direction(Lateral/Longitudinal)(optional)
10	Hydraulic system	Muanual or Power supply for decoiler / post-cutting system

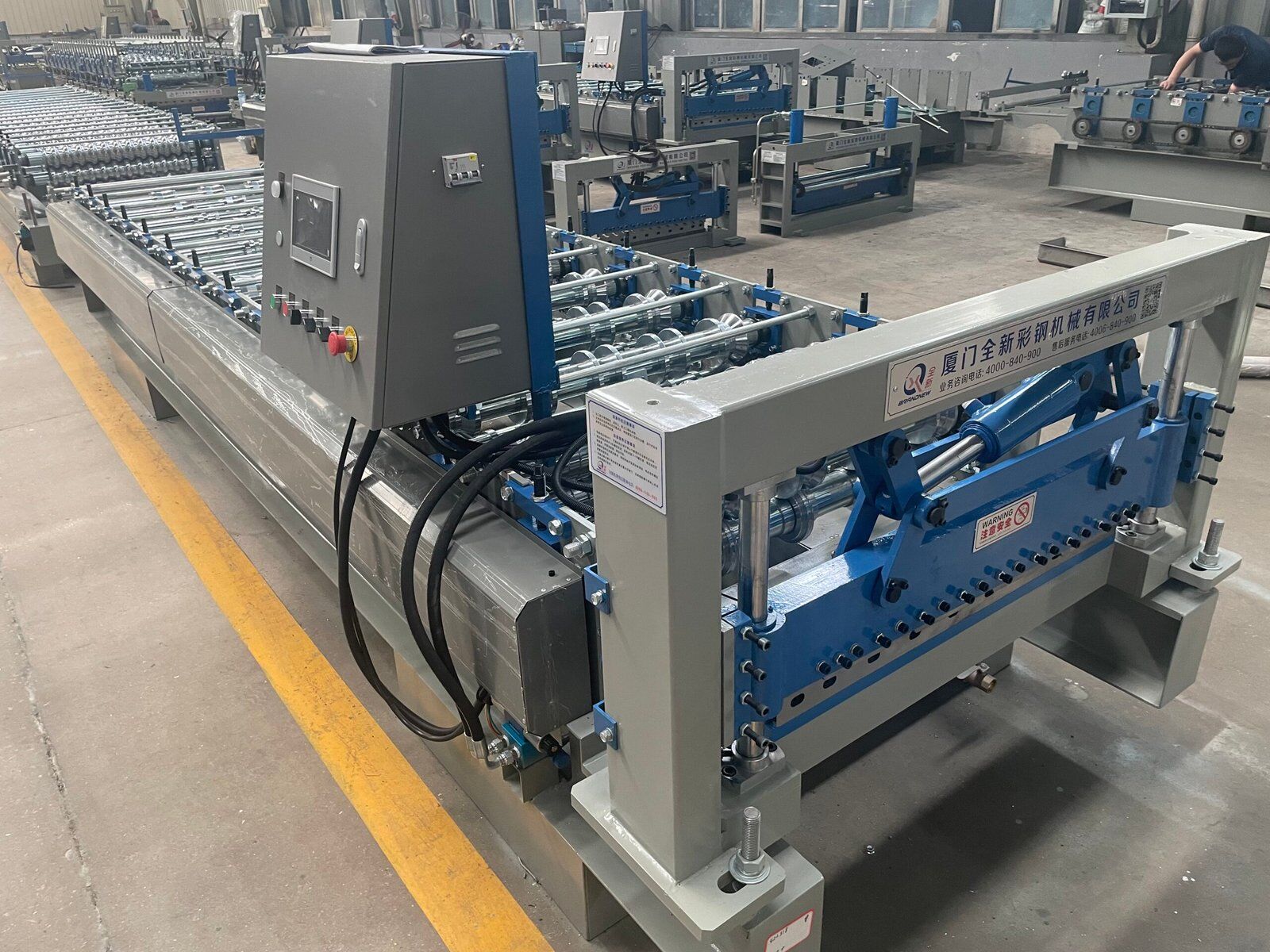

11	Electric control system	MITSUBISHI/SIEMENSE/AMS(optional or as requested)

Specifications of metal roofing machine

Machine Condition	Fully New, A Grade quality
Panel Shape	As profile drawing and customers requirements
Operator needed	1 person
Power Supply	220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment Weight	About 7t
Dimension (LWH)	about 15**3*1.7m
LOADING SIZE	Normally need 1×40’/container
Equipment Color	Normally Blue/Gray, or as requests;
Place of Origin	Fujian, China (Mainland)
Packing	Standard and careful export packing

Work flow

The typical operational sequence of our roof tiling equipment available for sale is as follows:
– Coil Charging Car (an optional component)
– Decoiler (either passive or automatic)
– Front Shear (optional)
– Feeding and Guiding Table
– Filming Covering (optional)

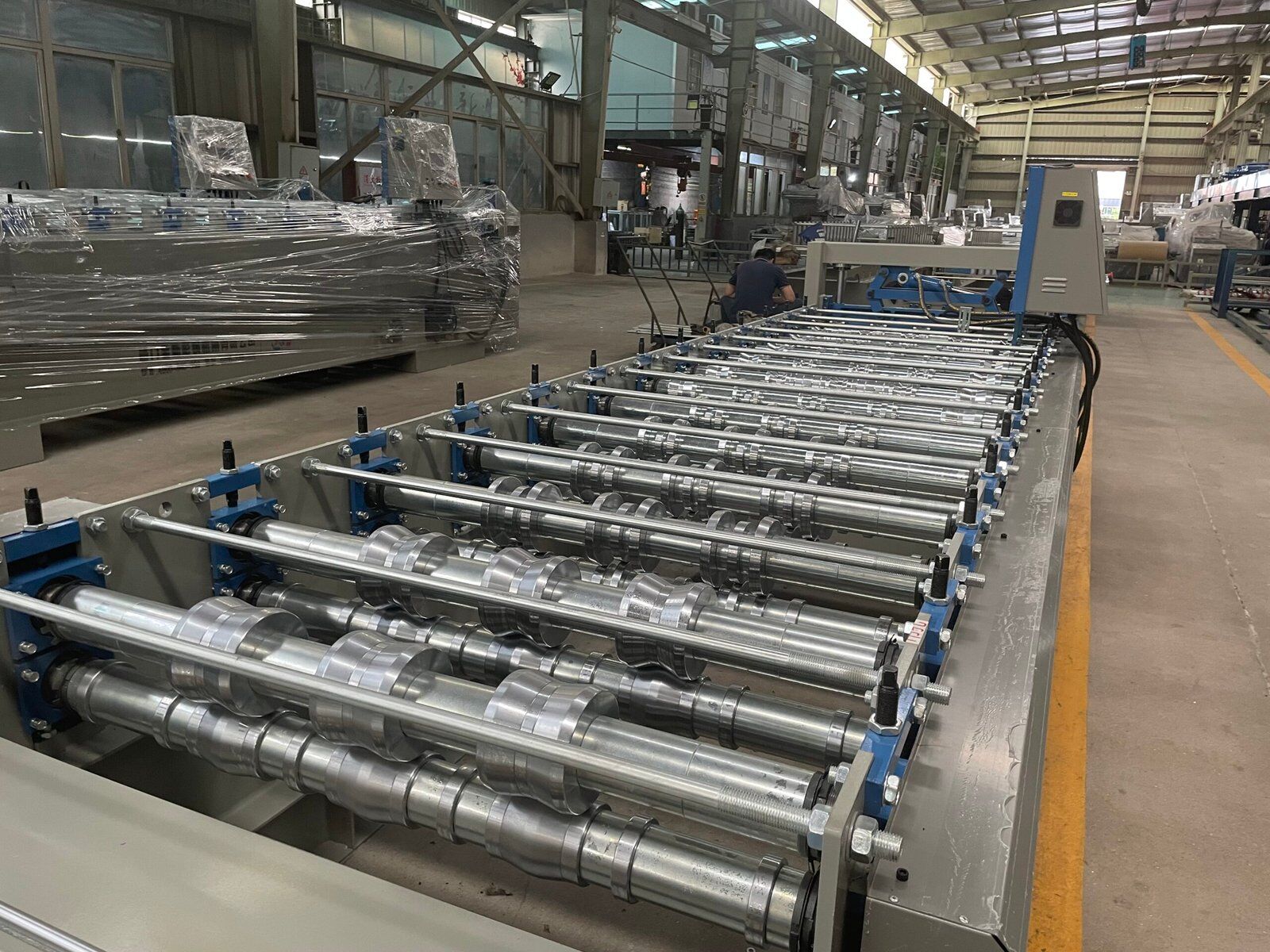

– Roll Forming System

Application

Advantages of Metal Roofing Machine
A roofing tile machine is specialized equipment designed to manufacture high-quality roofing tiles. Composed of precision rollers, conveyor systems, and advanced components, this machinery enables the production of diverse tile designs and textures.

Modern variants are computer-controlled for accuracy and efficiency, while manual tile-making machines remain a practical option for smaller operations. Produces both traditional and glazed tiles, with metal roofing tiles offering a blend of classic elegance and modern architectural adaptability.Streamlines production with automation, reducing labor costs and ensuring consistent quality.Metal roofing tiles simplify installation, significantly cutting down project timelines. Engineered to meet rigorous industry standards, guaranteeing long-lasting performance.

As essential tools for roofing manufacturers, these machines uphold quality and innovation, catering to diverse construction needs.
