Metal Roof Making Machine

Metal Roof Making Machine

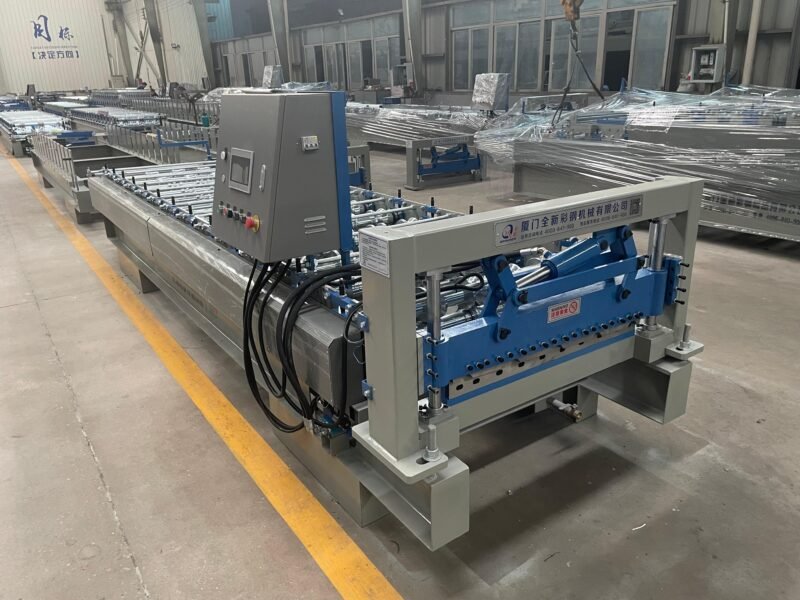

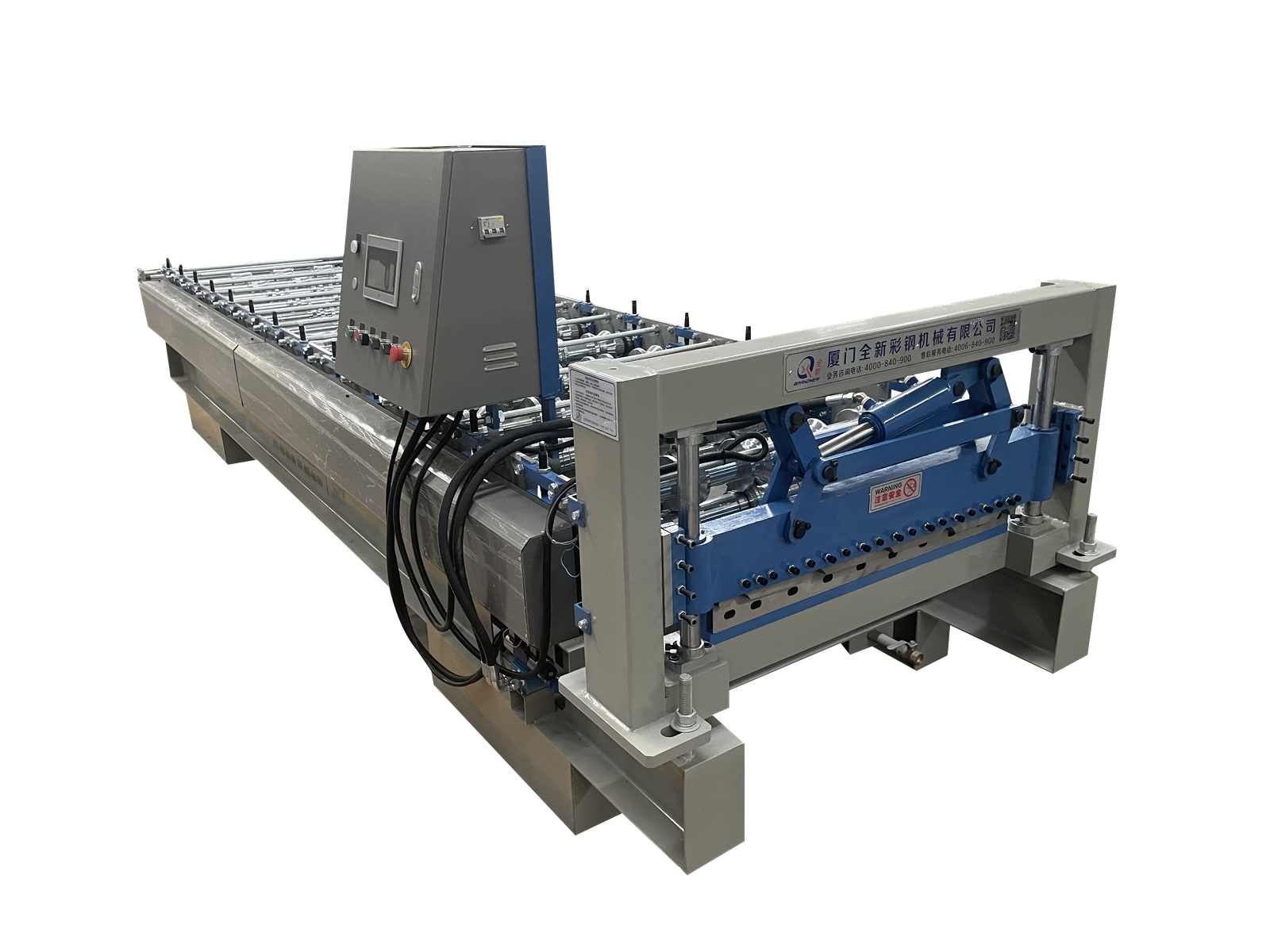

The Metal Roof Making Machine for Versatile Metal Roof Tile Production is an advanced piece of industrial equipment designed to efficiently create metal roof tiles. This machine combines hydraulic cutting with roll forming technology to produce high-quality metal tiles used in various roofing applications.



Main Machine

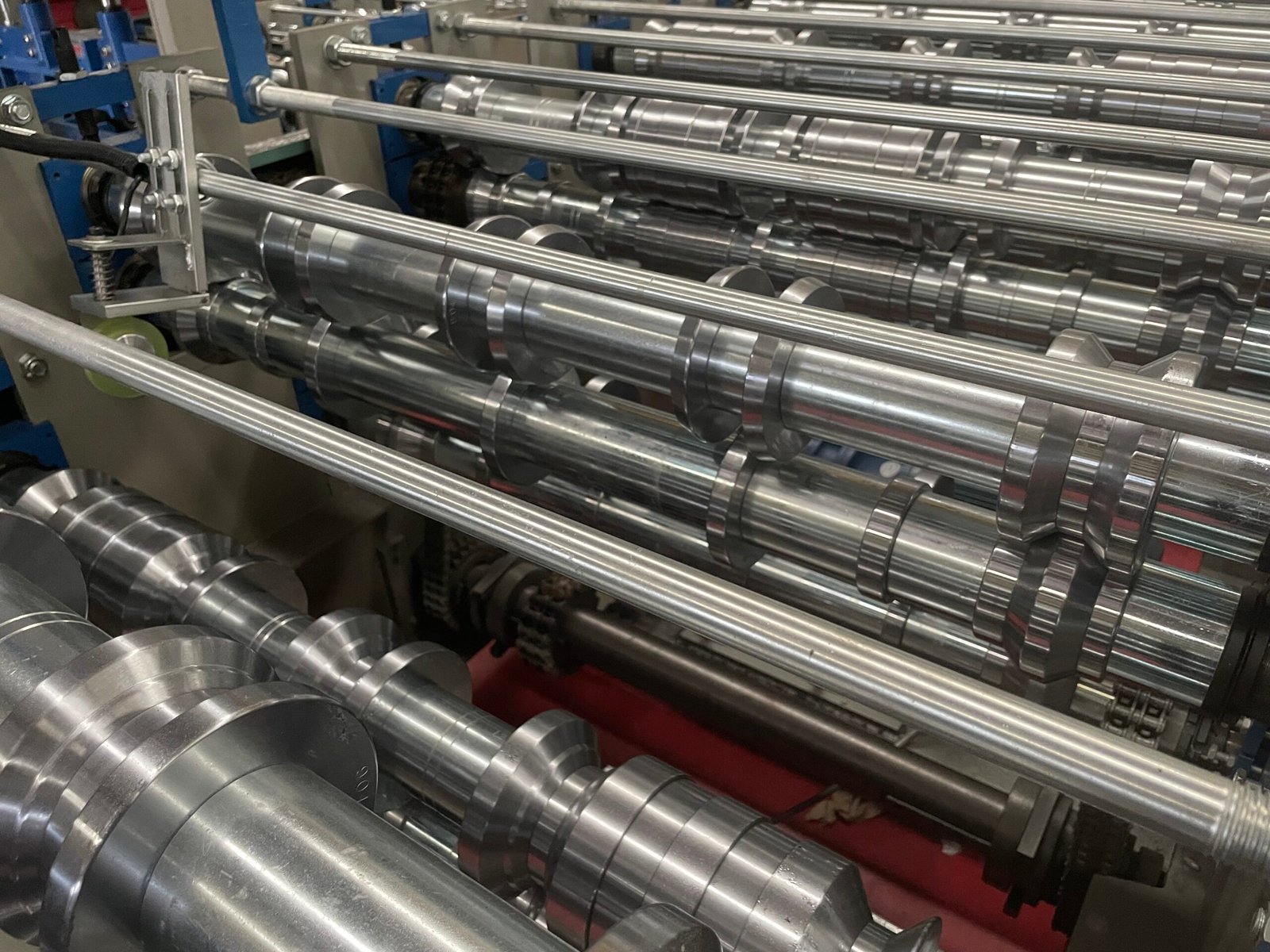

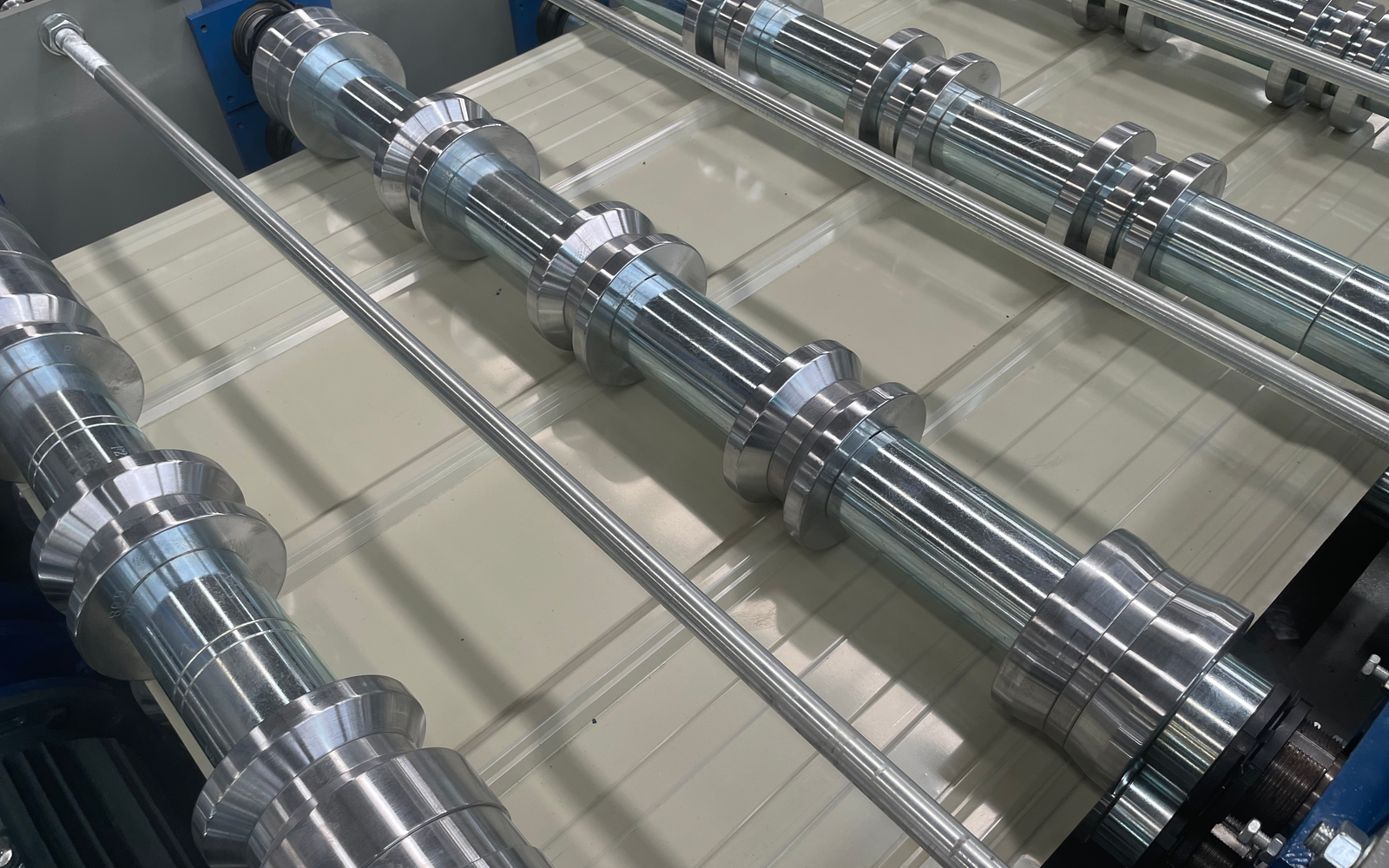

1.Roll stand: 22 stations

2.Driving power: 11KW,chain transmission

3.Roller Material : 45# steel finishing

5.The roler 45# steel fine processing, surface hard chrome plating and brushed polishing

5.Shaft Material: 45# steel finishing

6.Shaft diameter: φ80mm

7.Machine frame: welding by 396 x 199mm H shape steel



Electric Control System

1.Control system: PLC (Customers can specify the brand)

2.Operation platform: touch screen+press button

3.Main motor: AC frequency conversion electric motor



Profile Drawing

Video

Main Parameters

Driving Motor	11KW
Forming Station	22
Roller Material	45# steel
Shaft	45# steel,φ65mm
Pump Motor	3.0KW
Cutting Type	Hydraulic Cutting
Control System	PLC
