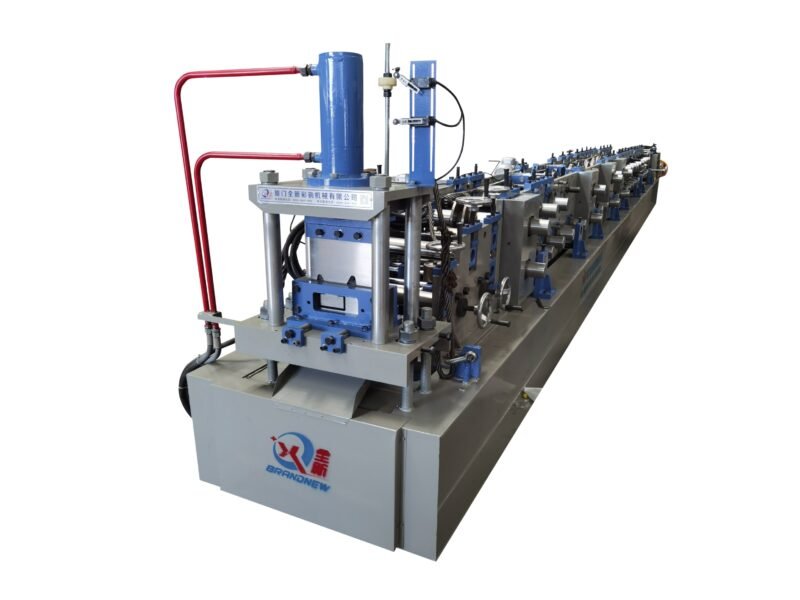

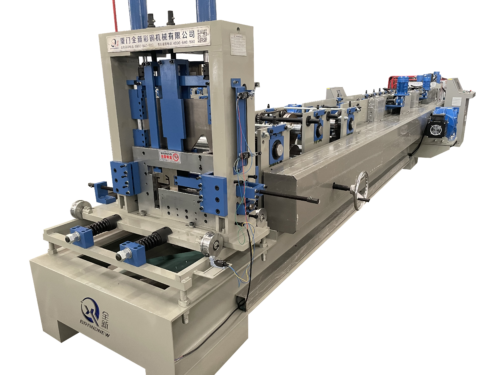

C Purlin Roll Forming Machine

C Purlin Roll Forming Machine

Beenew C Purlin Roll Forming Machine for efficiently producing C-type purlins,widely used in the steel structure industry.

In fact,C purlin and Z purlin are both used as supports in building structures, as horizontal beams or steel bars. Beenew’s C20020 is a roll former for producing galvanized steel C purlin. It can produce cee purlin of different sizes with a width of 50mm-200mm. C purlin application range includes but is not limited to:
1. Industrial plant buildings
2. Agricultural greenhouses
3. Sports stadiums
4. Opera houses
5. Warehousing and logistics
6. Building expansion and renovation

Machine Quick Details
Model number: C20020	Condition: New
Type: C Purlin machine	Brand Name: Beenew
Max Production Capacity: 20m/min	Power(W): 7.5KW
Warranty: 2 years	Place of Origin: China

Beenew C20020 is a forming machine specially used for the production of C purlin, which produces steel coils with a thickness of 1.0-2.0mm into C purlin. Also,machine has a high degree of precision and every purlin produced can meet your quality standards. The forming machine is fully automatic, fully automatic switching purlin size (our automatic size switching technology has obtained a patent certificate), and can produce purlins with a width of 50mm-200mm.

Work Flow

Decoiler — Feeding and leveling —-Main roll forming — Hydraulic punching and cutting — Product support frame

Advantages of the automatic size-change type C channel machine

1. It is capable of manufacturing various purlin sizes ranging from C50 to C200 without the necessity of replacing rollers or spacers.

2. There is no requirement to change the cutter when dealing with different purlin sizes.

3. The operation is simple and straightforward, and the cost for maintenance is relatively low.

4. It enables infinite sizing, meaning any size within the machine’s applicable range can be produced, which contributes to material savings.

5. There is an optional function to punch holes at any position on both the web side and the flange side of the purlin.

Main components

1. Hydraulic Decoiler
Un-coiler Type: Automatic fasten and loosen
Weight capacity: 5T

2. Feeding and Leveling Device:
This device serves the purpose of flattening the material.

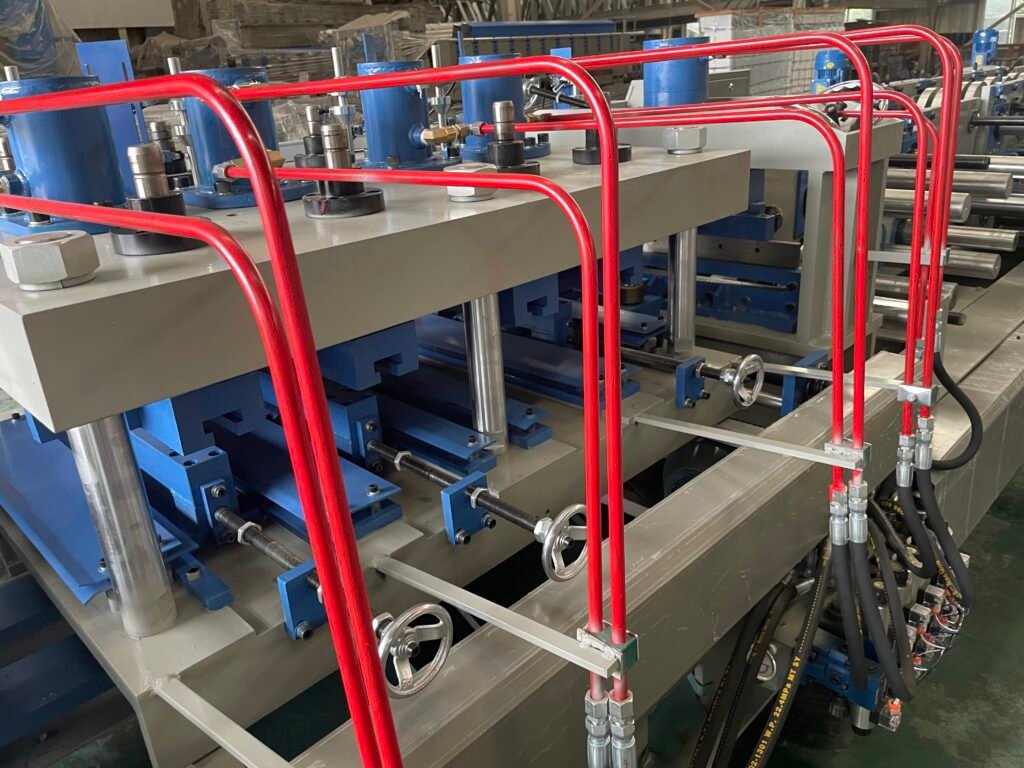

3.Main roll forming machine
Driving mechanism: Chain – driven
Maximum forming speed: 20 meters per minute
Roller configuration: Approximately 13 sets of rollers
Roller material: Utilizes Cr12 mould steel
Lower roller diameter: Roughly 360 millimeters
Shaft details: The shafts of the rollers undergo double – grinding on a grinding machine. The diameter of the main shaft ranges from ø60 – 45 mm (subject to the final design)
Main shaft material: Made of 40Cr
Size – changing mode: Available in automatic or semi – automatic options

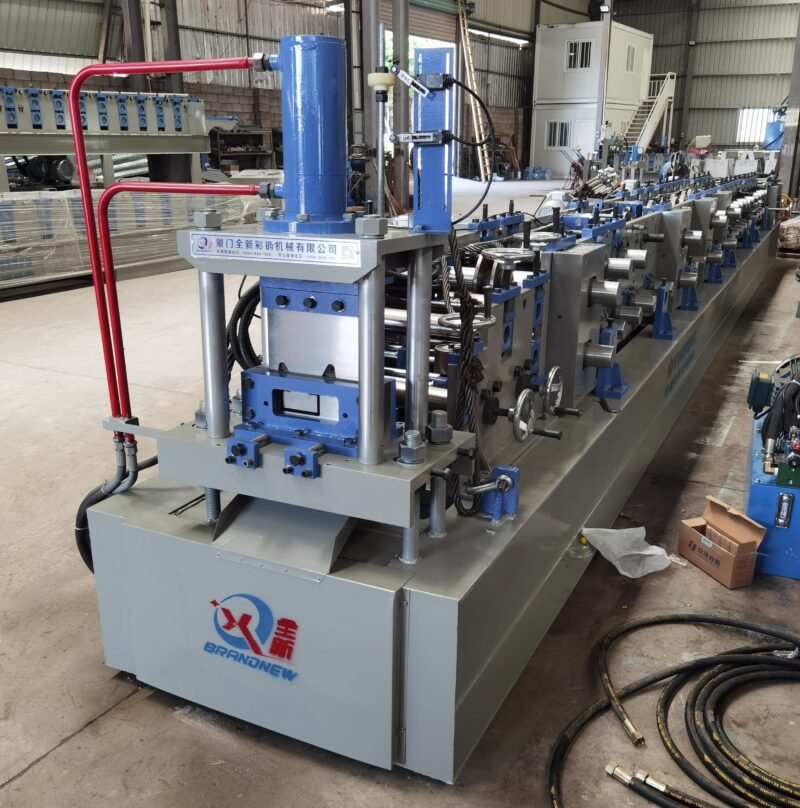

4. Hydraulic Punching & Cutting
Punching Type: Hydraulic punching (applied before roll forming)
Cutting Type: Hydraulic cutting (suitable for 50–200mm width range)
Cutting Material: Cr12MoV high-performance alloy steel
Hydraulic Motor Power: 4.0 kW
Hydraulic System Pressure: 12MPa

5.Product track —3 set

6. PLC Control System
Automated Control: Manages production quantity, punching length, and cutting length with precision.
Operational Safety: The machine is automatically paused during punching and cutting processes.

Measurement & Counting:
Automatic length measurement (precision: ±2mm).
Real-time production quantity tracking.

7.Product-C purlin

Our factory

Why Choose us：
– Boasting 28 years of expertise in manufacturing CZ purlin roll formers.
– Offering products with competitive prices and high – quality standards.
– Providing a 2 – year complimentary warranty.
– Ensuring a rapid response in after – sales service.
– Capable of automatically adjusting web size from 50mm to 200mm within 5 minutes.
– Open to customization according to clients’ specific needs.
– Featuring user – friendly operation and straightforward maintenance.
– Having self – developed post cutters, where a single blade can cut all sizes of final products.

As a factory with nearly 30 years of experience in roll forming machine manufacturing, Beenew produces more than 1,000 roll forming machines and more than 300 purlin forming machines each year. Choosing us means choosing quality.
