Solar Channel Roll Forming Machine C50-160

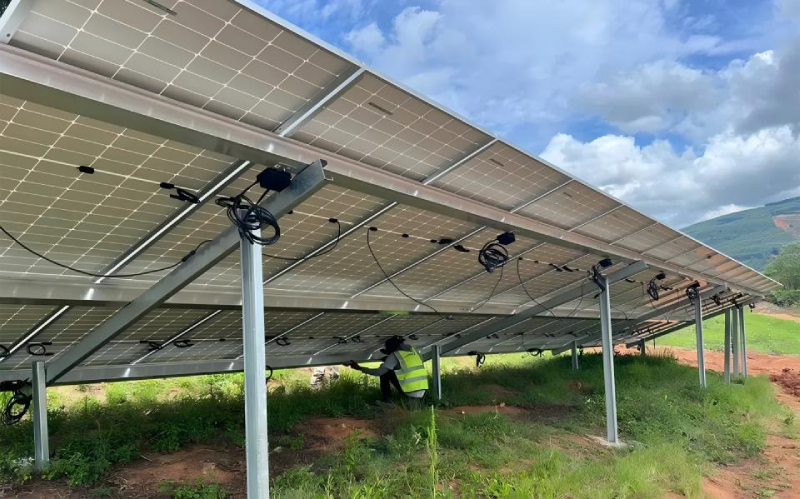

Solar photovoltaic (PV) panel brackets are crucial components in photovoltaic (PV) systems, providing stable support for both rooftop and ground-mounted solar panels. Racks and brackets are widely used due to their durability and ease of installation. Because the raw materials used in the brackets undergo special treatment, they ensure the stability of the solar PV panels regardless of the environment.
With the increasing number of solar photovoltaic system projects, roll forming machines for producing photovoltaic system components are being used more widely, such as photovoltaic bracket roll forming machines and photovoltaic guide rail roll forming machines.
Roll forming machine parameter
Forming thickness: 1.5-2.5MM
Feed width: 210MM
Shearing hydraulic motor: 7.5KW
Drive motor: 45.9KW (servo motor)
Tracking servo: 4.4KW
Shaft diameter: 85mm
Column thickness: 55mm
Base specifications: 25mm thick welded steel plate
Number of forming passes: 15 sets
Transmission method: Gearbox

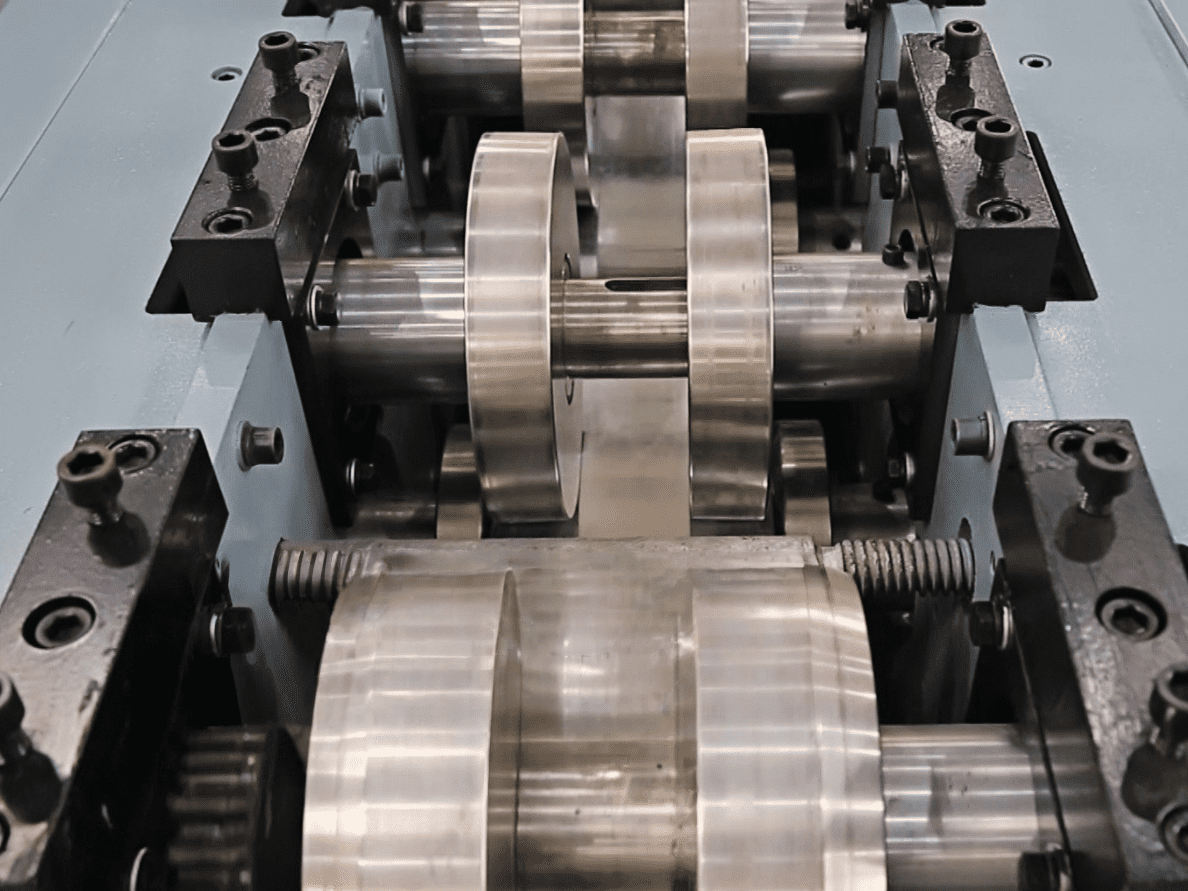

Roller material: CR12 heat-treated, precision machined, and hard chrome plated

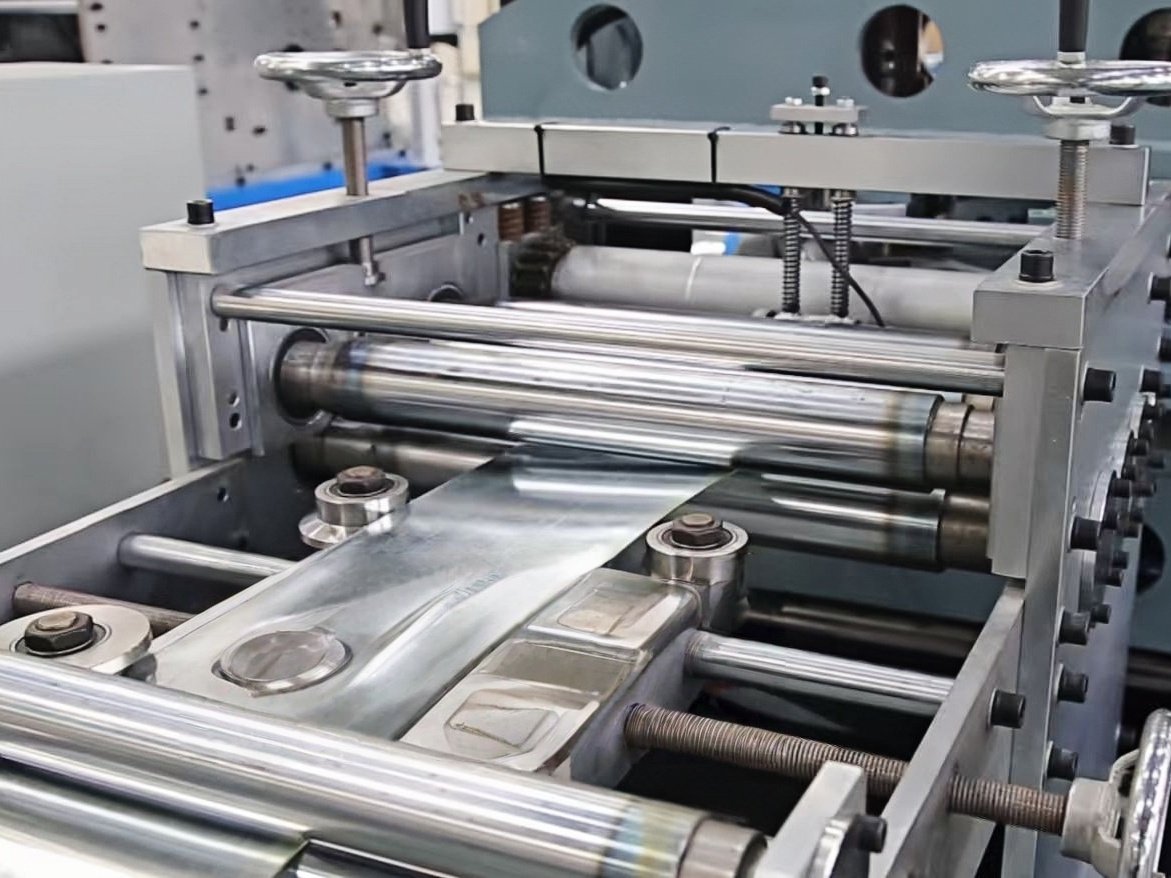

1 set of 4T double-head single-arm feeding machine. 4T load capacity, manual tensioning, passive feeding
Forming speed: 40m/min
Drive method: Gear motor + gearbox
Punching die: 1 set (tracking punch)

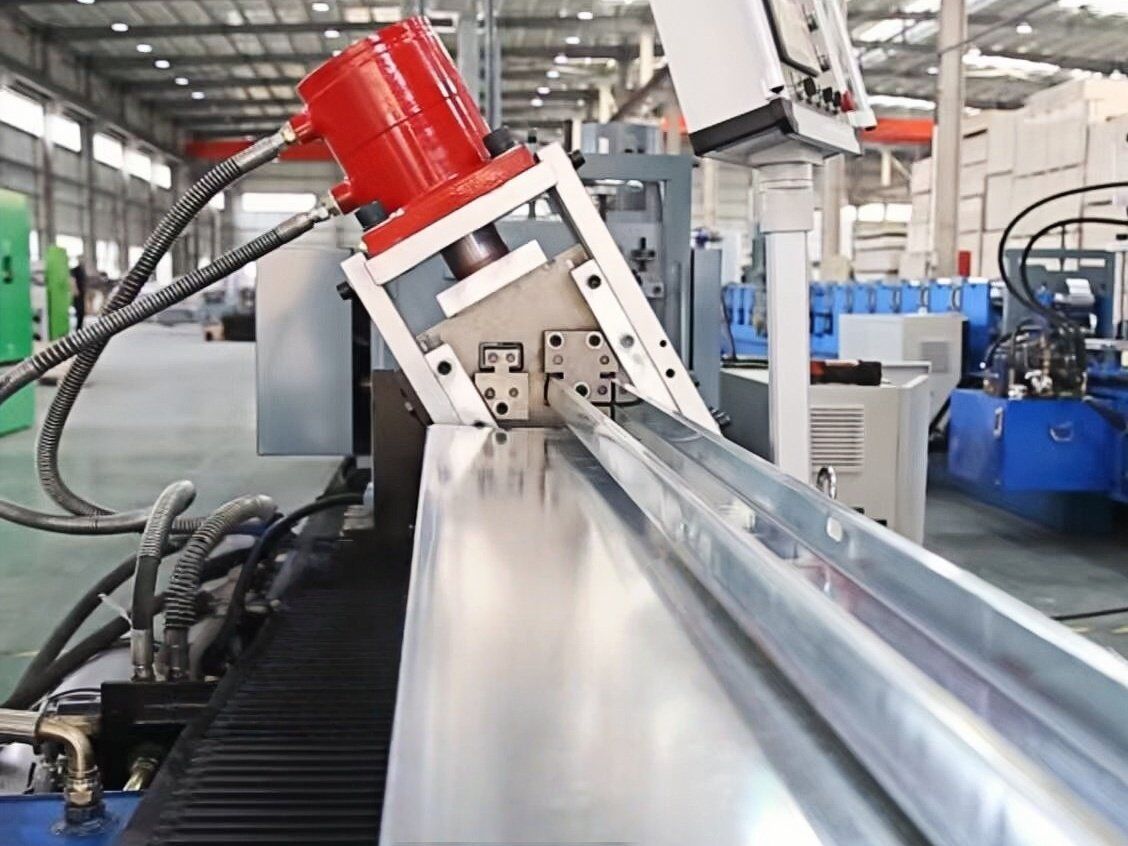

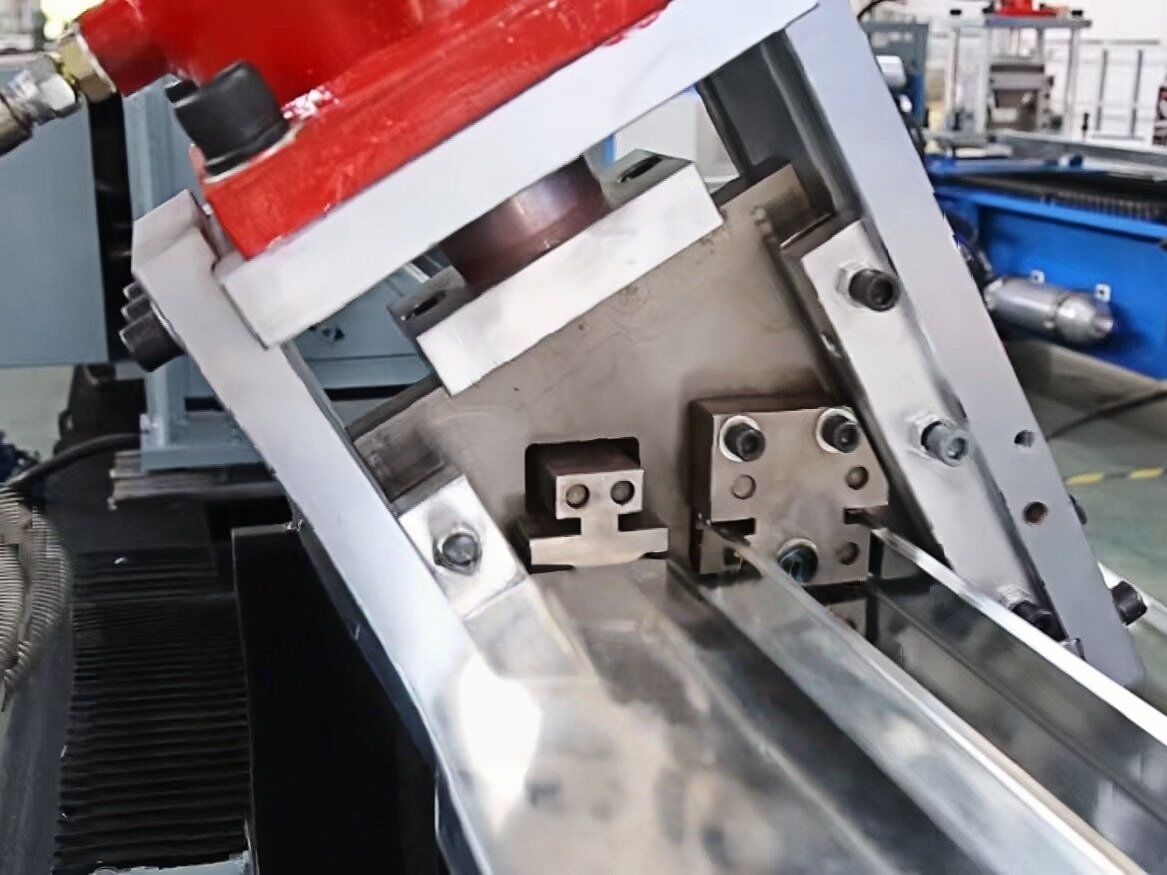

Cutting method: Hydraulic non-stop back-cutting
Length counting method: Counter (Omron, Japan)
Control method: PLC (Invitational)
Operation method: Button + Touchscreen (Invitational)
Speed
Machine color: Blue(or customize)
Feed width: 210MM
Shearing hydraulic motor: 7.5KW
Drive motor: 45.9KW (servo motor)
Tracking servo: 4.4KW
Shaft diameter: 85mm
Column thickness: 55mm
Base specifications: 25mm thick welded steel plate
Number of forming passes: 15 sets
Transmission method: Gearbox
Roller material: CR12 heat-treated, precision machined, and hard chrome plated
1 set of 4T double-head single-arm feeding machine. 4T load capacity, manual tensioning, passive feeding
Forming speed: 40m/min
Drive method: Gear motor + gearbox
Punching die: 1 set (tracking punch)
Cutting method: Hydraulic non-stop back-cutting
Length counting method: Counter (Omron, Japan)
Control method: PLC (Invitational)
Operation method: Button + Touchscreen (Invitational)
Speed
Machine color: Blue(or customize)
Application scenarios
