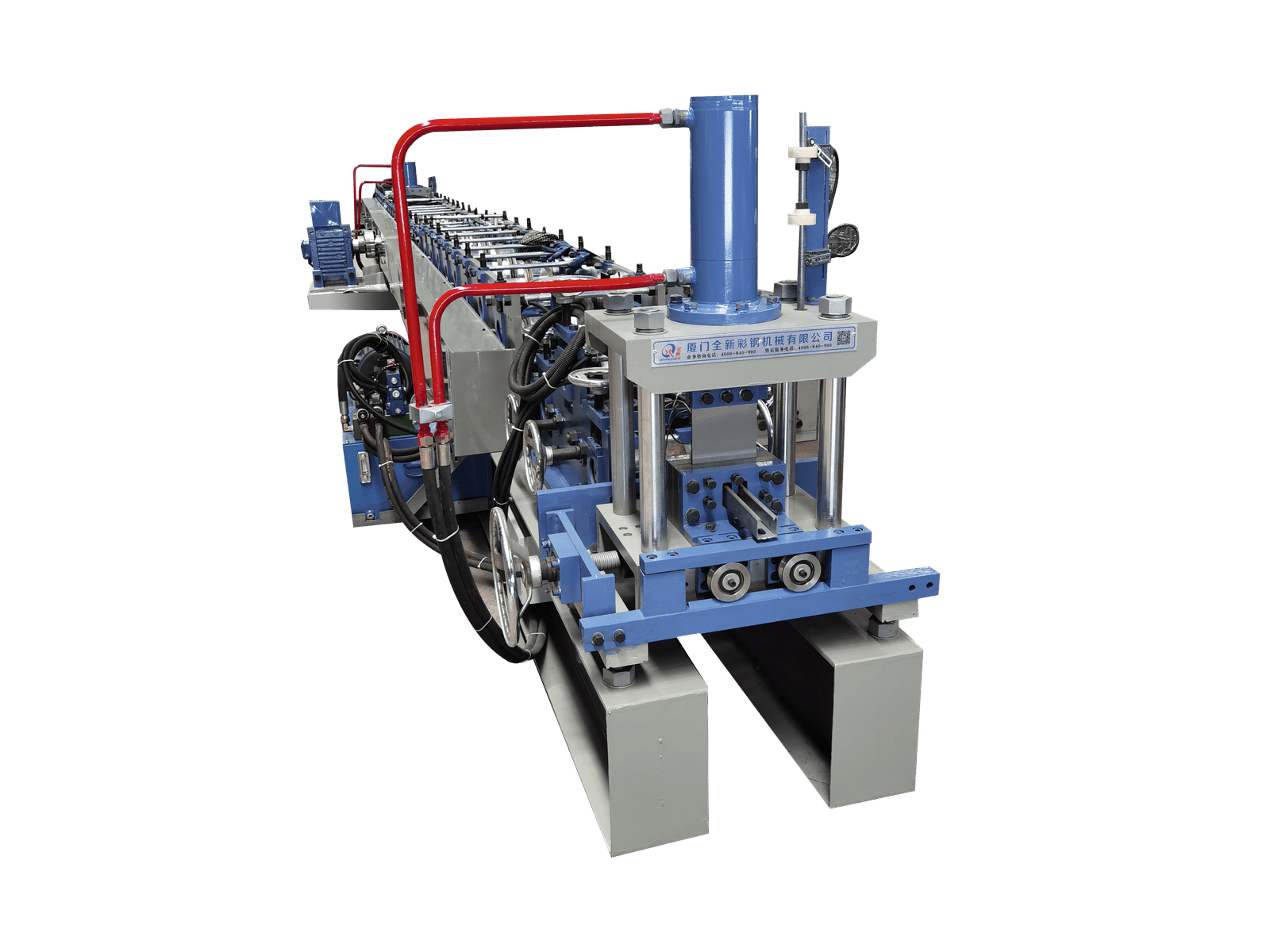

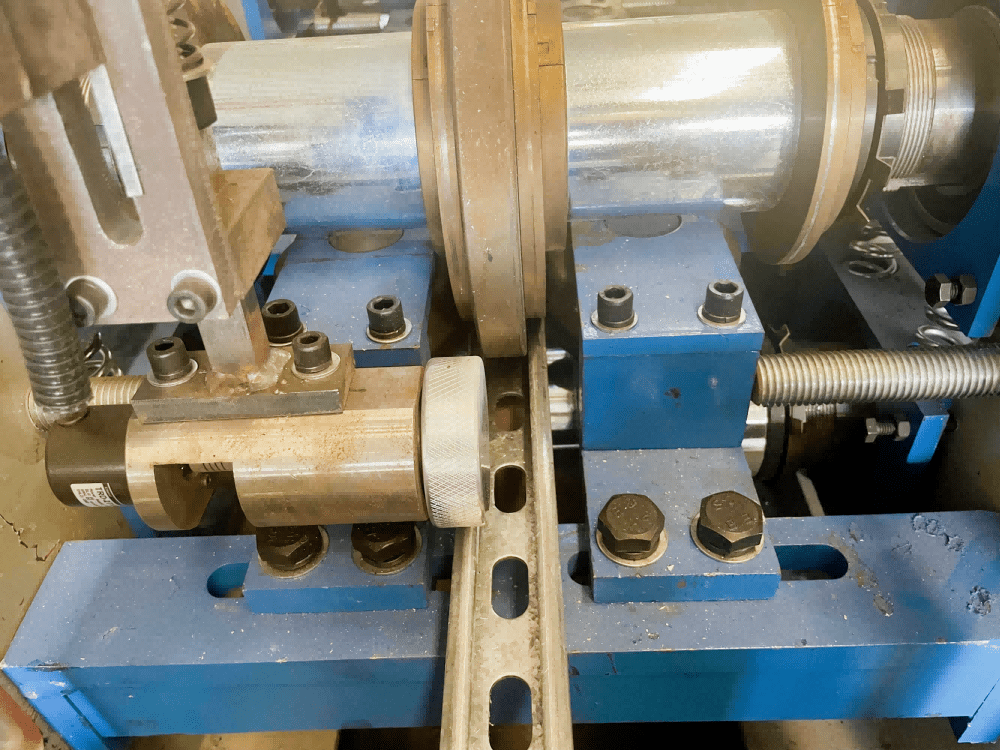

Steel stud roll forming machine can produce various profiles, such as columns, rails, channels, C/U/T profiles, etc.

These profiles are often used as vertical frames of non-load-bearing wall systems, ceilings, gypsum board supports, photovoltaic system brackets, etc.

According to the profile design drawings provided by customers, Beenew can customize the forming machine for profiles of various sizes. In addition, it can also be designed as a high-speed, fast stamping and fast cutting system.

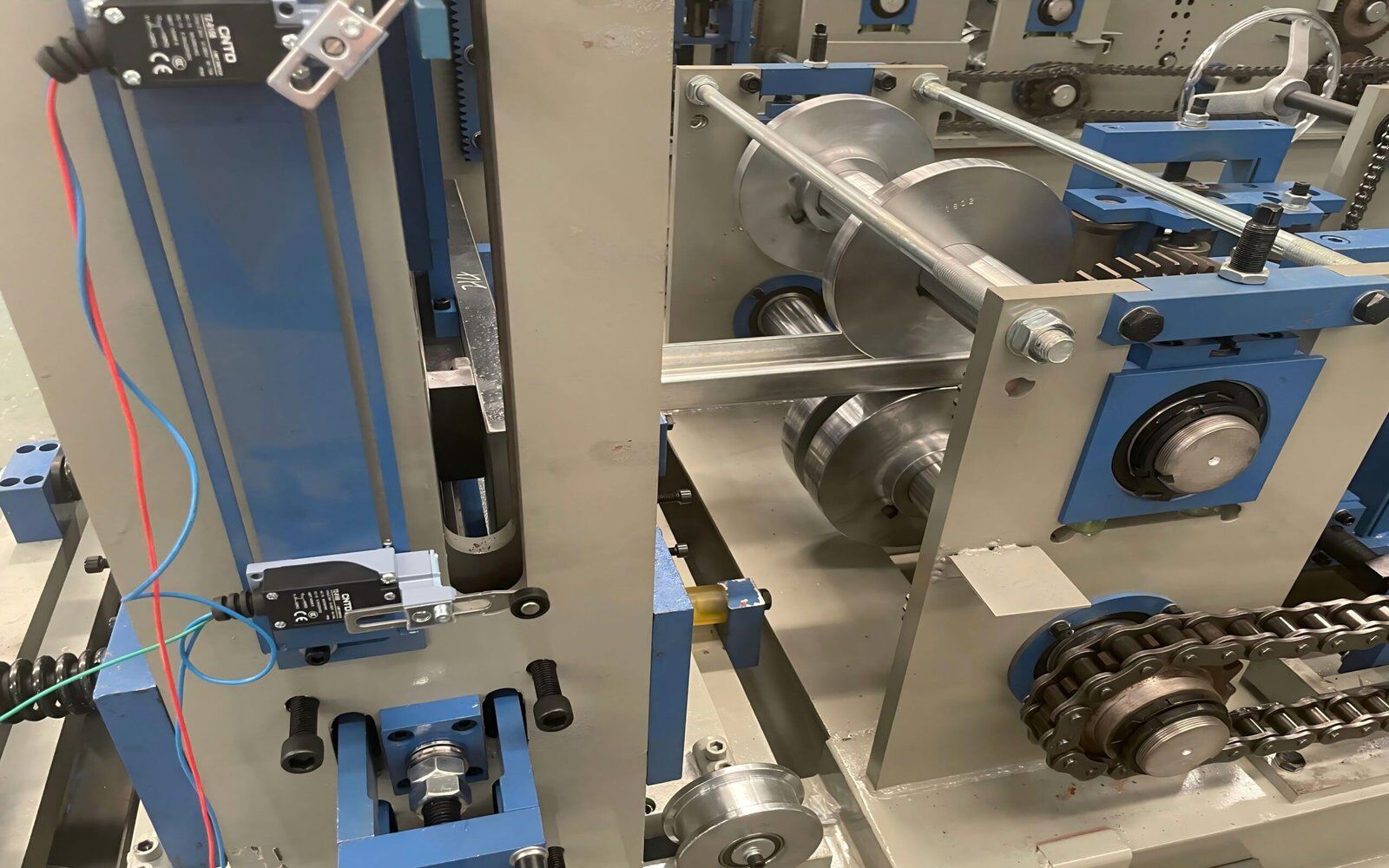

Main Machine

1. Roll stand: 24 stations
2.Main motor power: 22Kw
3. Material of the roller: GCr15, CNC machining with rough turning, quenching, finished turing, and accurate grindingHRC 60-62
4. The roller processed bv CNC machine with finish machining. The surace adopt finished polishing. the roughness is 0.05mm
5. Material of the main shaft: 45# steel, quenching and tempering, CNC machining with rough turning, finish turning, andaccurate grinding
6.The diameter of the main shaft: Ф65mm
7. Material of frame: welding by 250 x 125mm H shape steel, by using carbon dioxide gas arc welding. The surface used shotblasting treatment.
8. Typical Profile Drawing of Stud, Track, Channel Roll Forming Machine
