Features of c channel roll fomring machine

The C30030 C channel roll forming machine stands as an ideal choice for diverse purlin production requirements. Equipped with 14 chain-driven roll-forming stations, it ensures superior stability and high output, enabling seamless achievement of production goals. Its intuitive design simplifies operation, boosting productivity while minimizing downtime.

Adaptable to material widths of 100–300mm and thicknesses of 1.0–3.0mm, this machine offers exceptional versatility for varied specifications and applications. Built with a sturdy frame and long-lasting components, it guarantees consistent performance and durability, maintaining quality across extended manufacturing cycles.

Whether for small enterprises or large-scale operations, the C30030 enhances operational workflows, empowering businesses to elevate efficiency and secure a competitive edge. Incorporating state-of-the-art technology, this machine is a strategic investment for driving profitability and future-ready production.

Upgrade your manufacturing prowess with the C30030 C Purlin Machine. Its advanced engineering and reliability position your business to excel in dynamic markets, ensuring sustained growth and industry leadership.

Work Flow

Decoiler — Feeding and leveling —-Main roll forming — Hydraulic punching and cutting — Product support frame

Advantages of the automatic size-change type C channel machine

1. It is capable of manufacturing various purlin sizes ranging from C75 to C300 without the necessity of replacing rollers or spacers.

2. There is no requirement to change the cutter when dealing with different purlin sizes.

3. The operation is simple and straightforward, and the cost for maintenance is relatively low.

4. It enables infinite sizing, meaning any size within the machine’s applicable range can be produced, which contributes to material savings.

5. There is an optional function to punch holes at any position on both the web side and the flange side of the purlin.

Main components

1. Hydraulic Decoiler
Un-coiler Type: Automatic fasten and loosen
Weight capacity: 5T

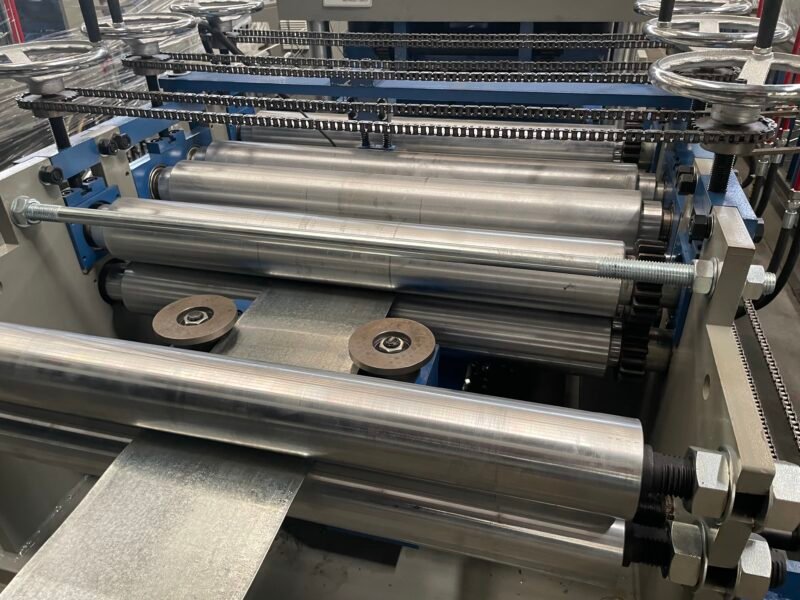

2. Feeding and Leveling Device:
This device serves the purpose of flattening the material.

3.Main roll forming machine
Driving mechanism: Chain – driven
Maximum forming speed: 30 meters per minute
Roller configuration: Approximately 14 sets of rollers
Roller material: Utilizes Cr12 mould steel
Lower roller diameter: Roughly 360 millimeters
Shaft details: The shafts of the rollers undergo double – grinding on a grinding machine. The diameter of the main shaft ranges from ø80 – 65 mm (subject to the final design)
Main shaft material: Made of 40Cr
Size – changing mode: Available in automatic or semi – automatic options

4. Hydraulic Punching & Cutting
Punching Type: Hydraulic punching (applied before roll forming)
Cutting Type: Hydraulic cutting (suitable for 100–300mm width range)
Cutting Material: Cr12MoV high-performance alloy steel
Hydraulic Motor Power: 7.5 kW
Hydraulic System Pressure: 12–16 MPa

5.Product track —1 set

6. PLC Control System
Automated Control: Manages production quantity, punching length, and cutting length with precision.
Operational Safety: The machine is automatically paused during punching and cutting processes.

Measurement & Counting:
Automatic length measurement (precision: ±2mm).
Real-time production quantity tracking.

7.Product-C purlin

Our factory

Why Choose us：
– Boasting 28 years of expertise in manufacturing CZ purlin roll formers.
– Offering products with competitive prices and high – quality standards.
– Providing a 2 – year complimentary warranty.
– Ensuring a rapid response in after – sales service.
– Capable of automatically adjusting web size from 100mm to 300mm within 5 minutes.
– Open to customization according to clients’ specific needs.
– Featuring user – friendly operation and straightforward maintenance.
– Having self – developed post cutters, where a single blade can cut all sizes of final products.
