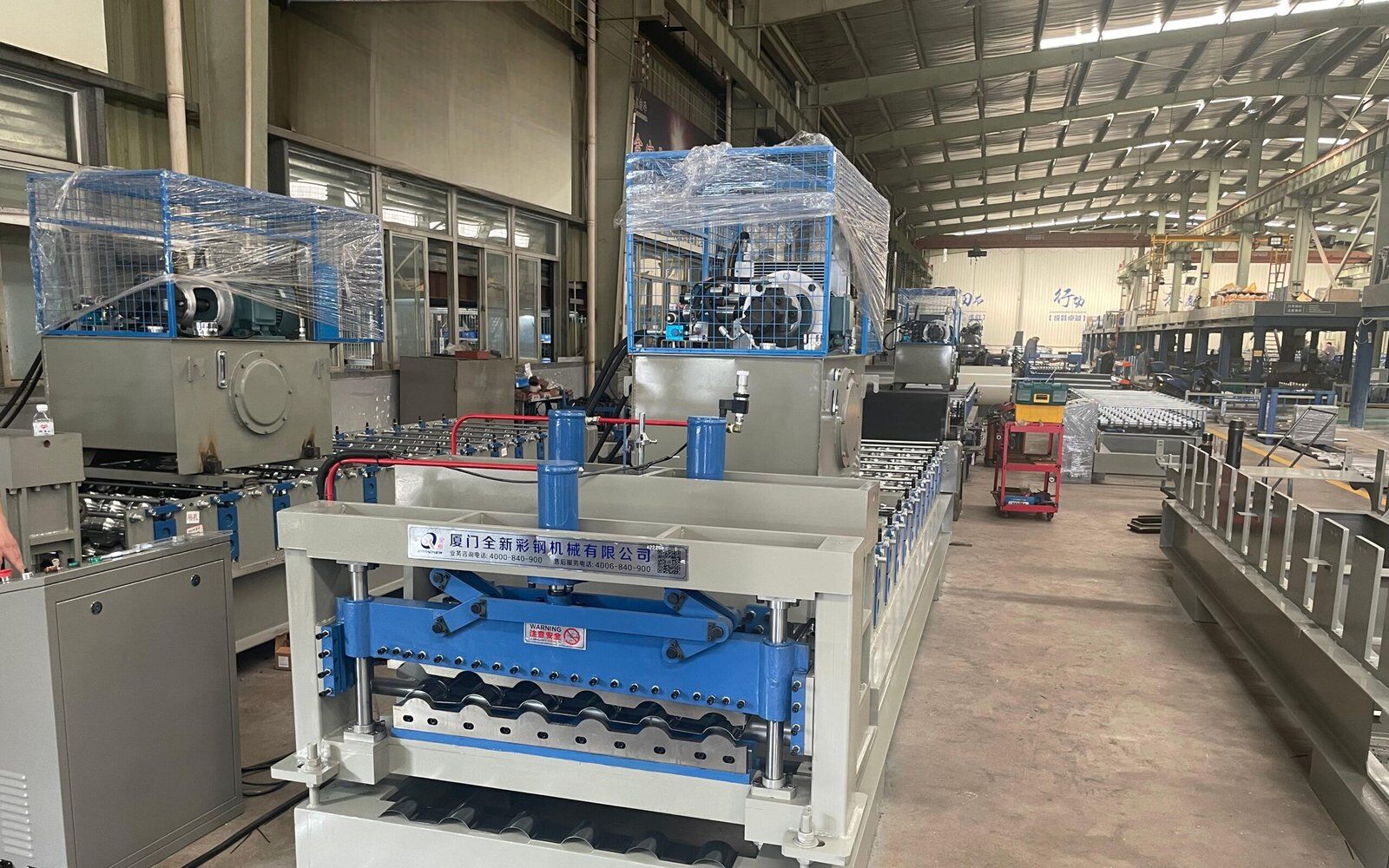

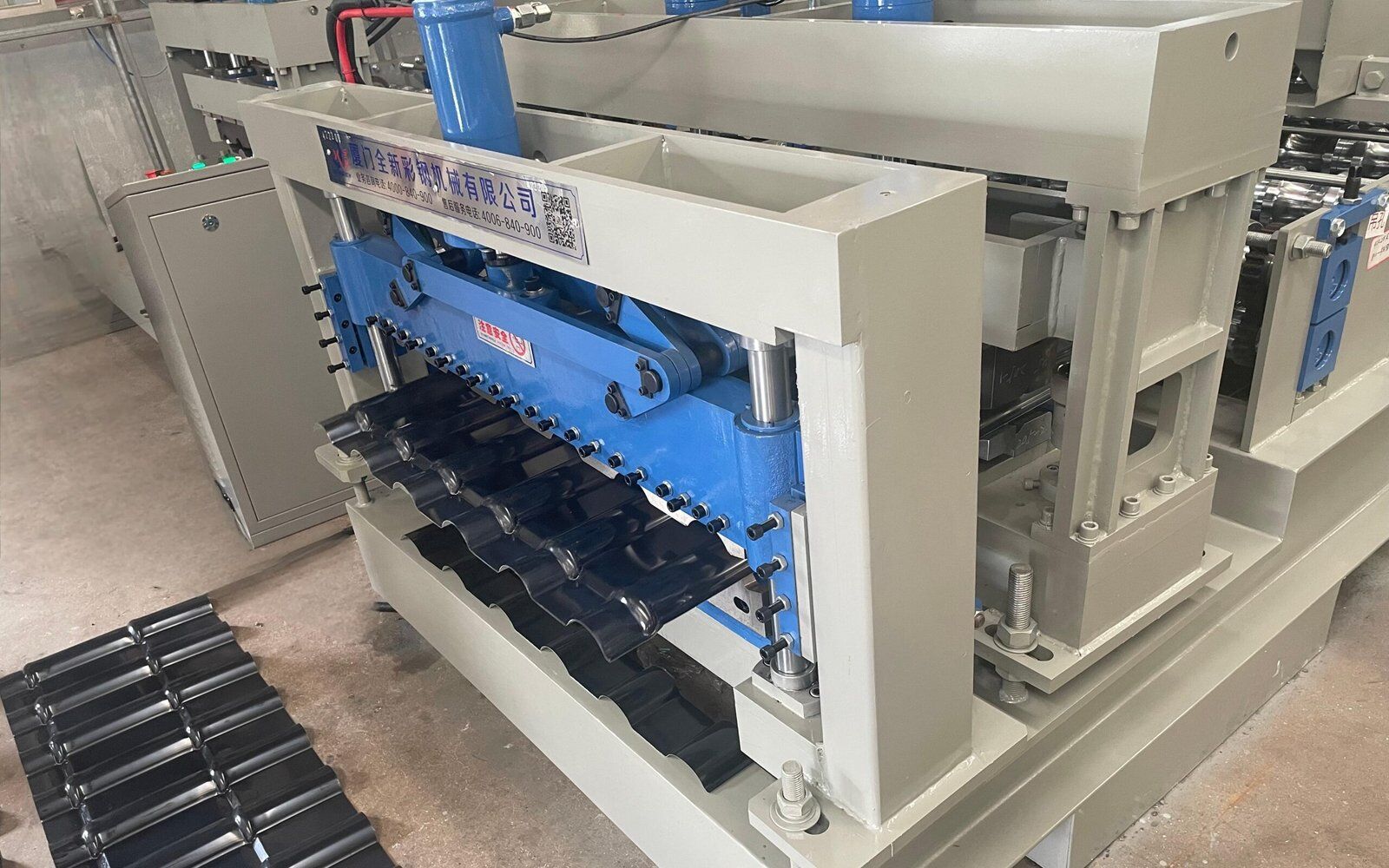

Glazed Tile Roll Forming Machine
Beenew glazed tile roll forming machine is designed according to the shape of traditional glazed tiles and is used to produce color steel glazed tiles. This type of glazed tile is lighter, thinner and more durable than traditional glazed tiles.
It can be used on the roofs of villas, industrial plants, warehouses, etc.
Main Machine of Roll Forming Machine

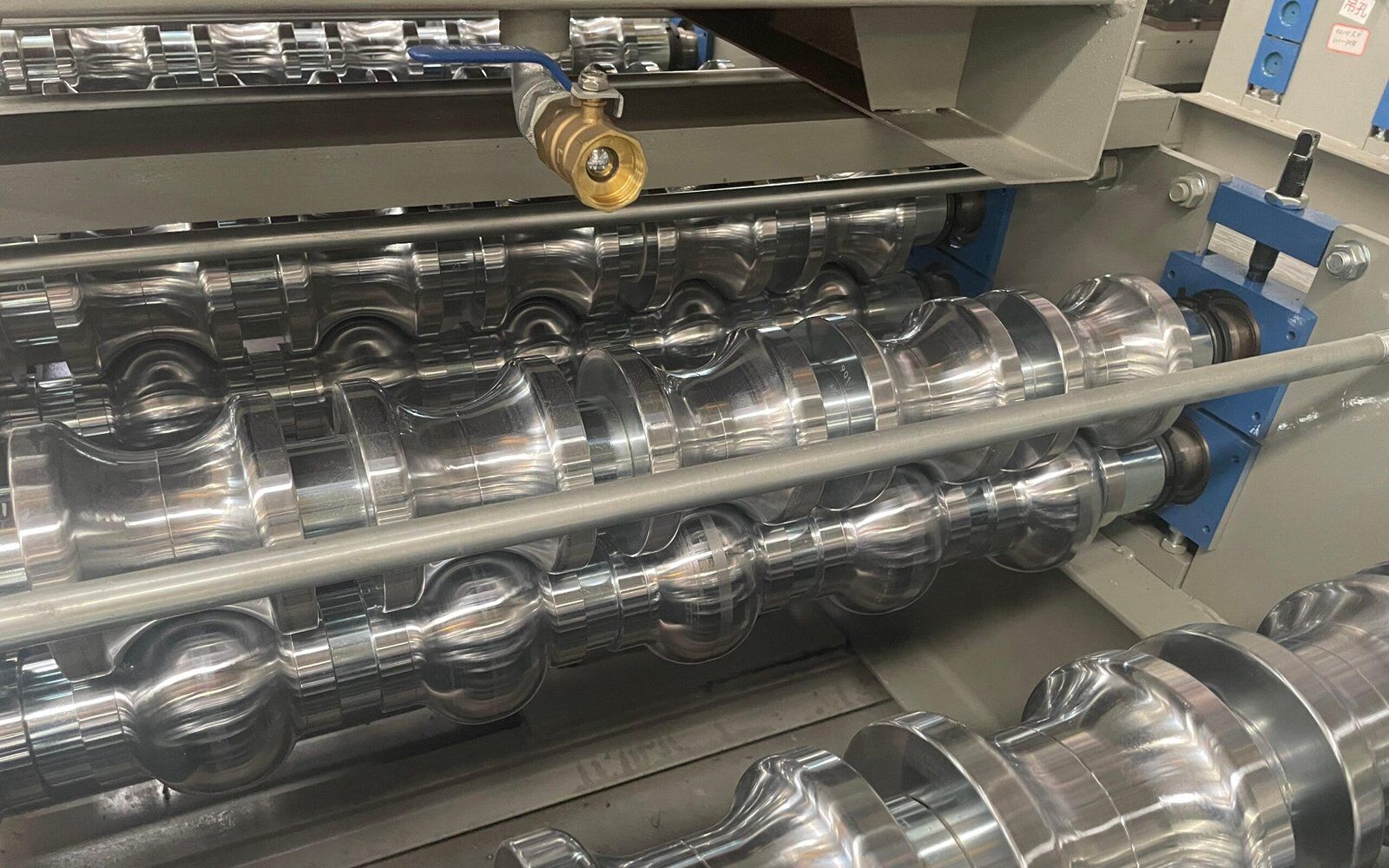

- The roller is made of 45# steel, the surface is hard chrome plated and then brushed and polished
- The roller shaft is made of 45# steel (φ75mm)
- Forming station: 15 passes
- Forming speed: step distance 240mm, forming speed ≥3.6m/min

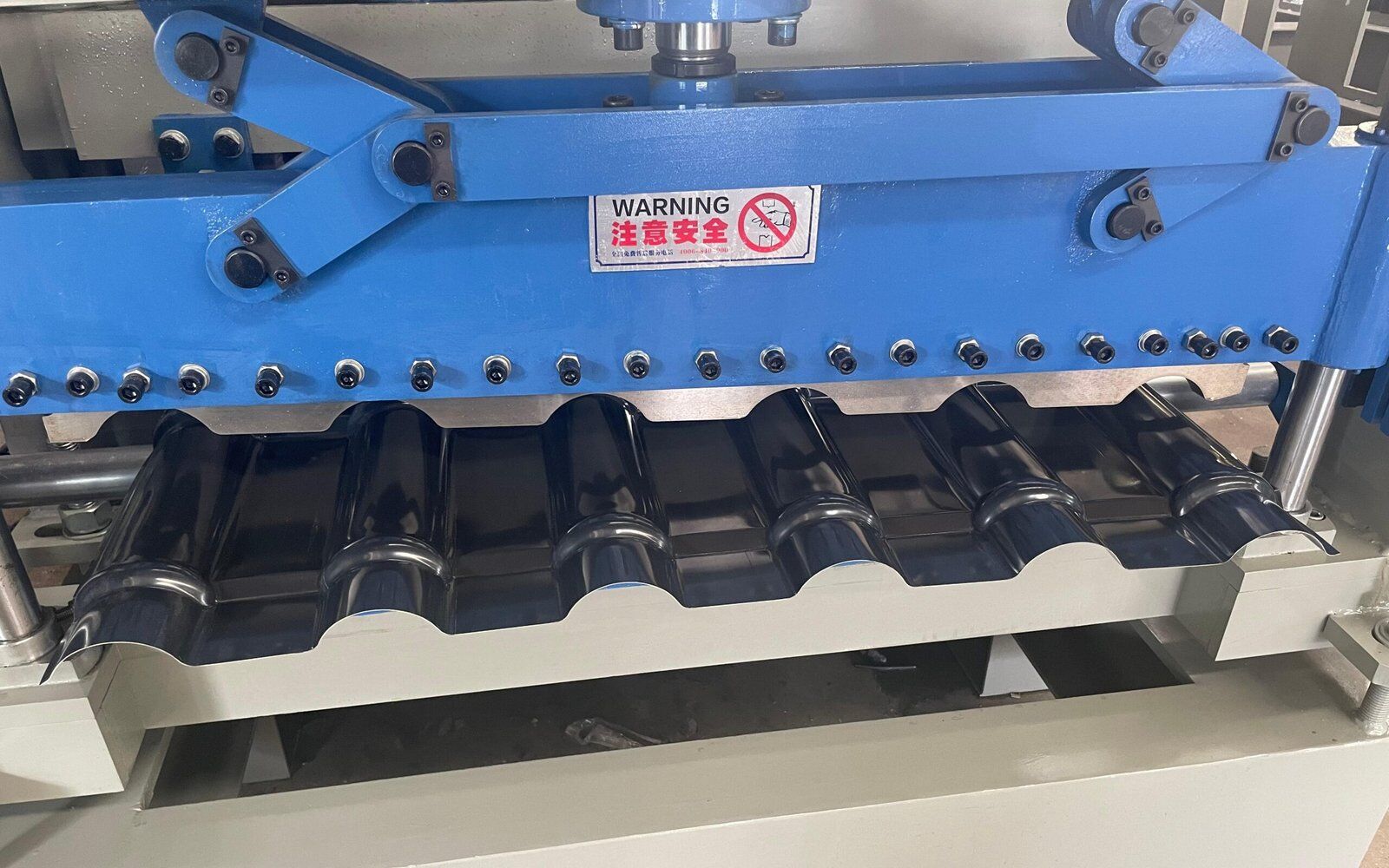

Cutter
- Hand-pull front shear + forming post shear (hydraulic)
- Cutter material: CR12,heat treated
Typical Profile Drawing
Technical Specification
|
Item |
Parameters |
| Driving Motor |
5.5KW |
| Forming Station |
13 |
| Roller Material |
45# steel |
| Shaft Diameter |
75mm |
| Shaft Material |
45# steel |
| Pump Motor |
15KW |
| Frame Type |
Common weld wall |
| Cutting Type |
Hydraulic Cutting |
| Control System |
PLC |
| Main Electric Parts Brand |
Simenz, Delta, Omron or Schneider |
| Cutting Length Precision |
±2mm |
| Electric Standard |
380V/50HZ/3Ph or customized |
