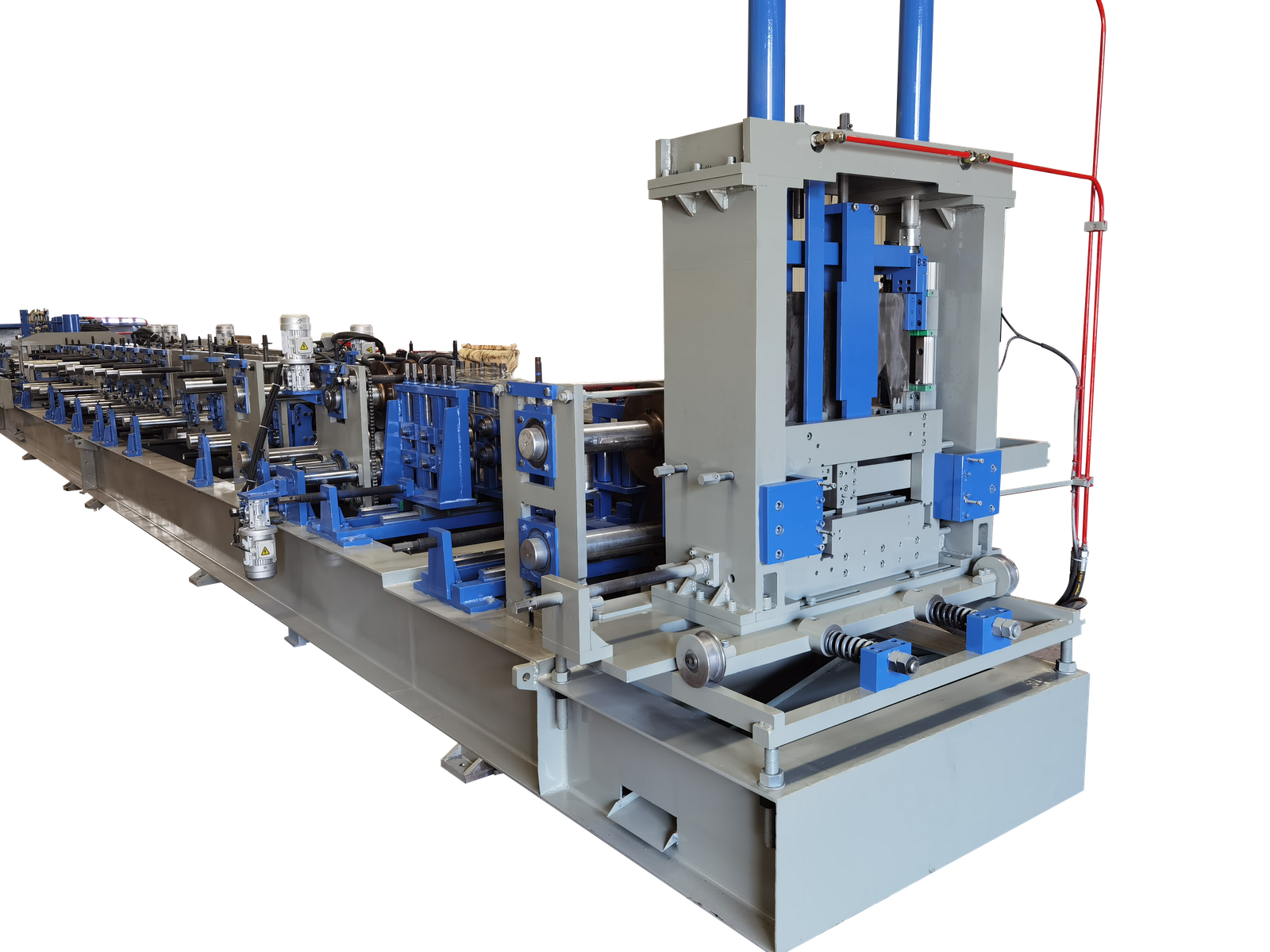

Beenew CZ40040 (large version) Super C and Z Purlin Machine: the ultimate solution for manufacturing premium CZ purlins with exceptional precision and efficiency. This advanced machine features 26 sets of roll stations powered by a robust gearbox, ensuring seamless and high-performance operation. The servo motor-driven system guarantees superior accuracy and dependable performance, making it ideal for mid-to-high-end industrial applications.

With a material width capacity of 120-400mm and thickness handling from 1.0-4.0mm, the CZ40040 (large version)adapts to diverse purlin production requirements, while its user-centric design simplifies operation and maintenance procedures.

Choosing the CZ40040 (large version) Super CZ Purlin Machine translates to investing in a high-performance solution that optimizes production timelines and output quality. Engineered with innovative technology and premium components, this machine stands as the optimal selection for businesses seeking to manufacture precision-engineered CZ purlins with unmatched operational efficiency and consistent results.

Video

Machine Quick Details
Model number: CZ40040 (large version)	Condition: New
Type: CZ Purlin machine	Brand Name: Beenew
Max Production Capacity: 30m/min	Power(W): 45.0KW
Warranty: 2 years	Place of Origin: China

Work Flow

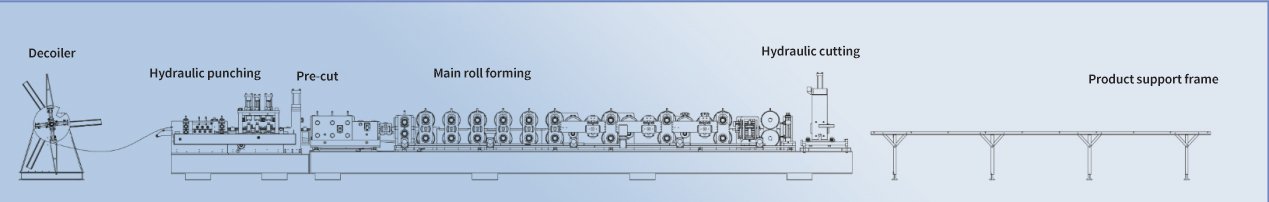

Decoiler – Leveling device — pre- punching and pre-cutting – roll forming line – Product rack

The Advantages of CZ purlin roll forming machine

1. Versatile Sizing Capability: It is capable of manufacturing purlins in a diverse range of sizes. For C purlins, it can produce sizes from C80 to C300, and for Z purlins, from Z120 to Z300.

2. Consistent Cutting Mechanism: The machine eliminates the hassle of changing the cutter when dealing with different purlin sizes.

3. User-friendly and Economical: The operation of the CZ purlin roll forming machine is straightforward, making it accessible even for operators with relatively little experience.

4. Material-saving Infinite Sizing: With its infinite sizing feature, the machine can produce purlins of any size within its specified range.

5. Flexible Punching Options: An optional feature of the machine is the ability to punch holes at any position on both the web side and the flange side of the purlin.

Main Components

1. Hydraulic Decoiler
Un-coiler Type: Automatic fasten and loosen
Weight capacity: 8T

2. Feeding and Leveling Device:
This device serves the purpose of flattening the material.

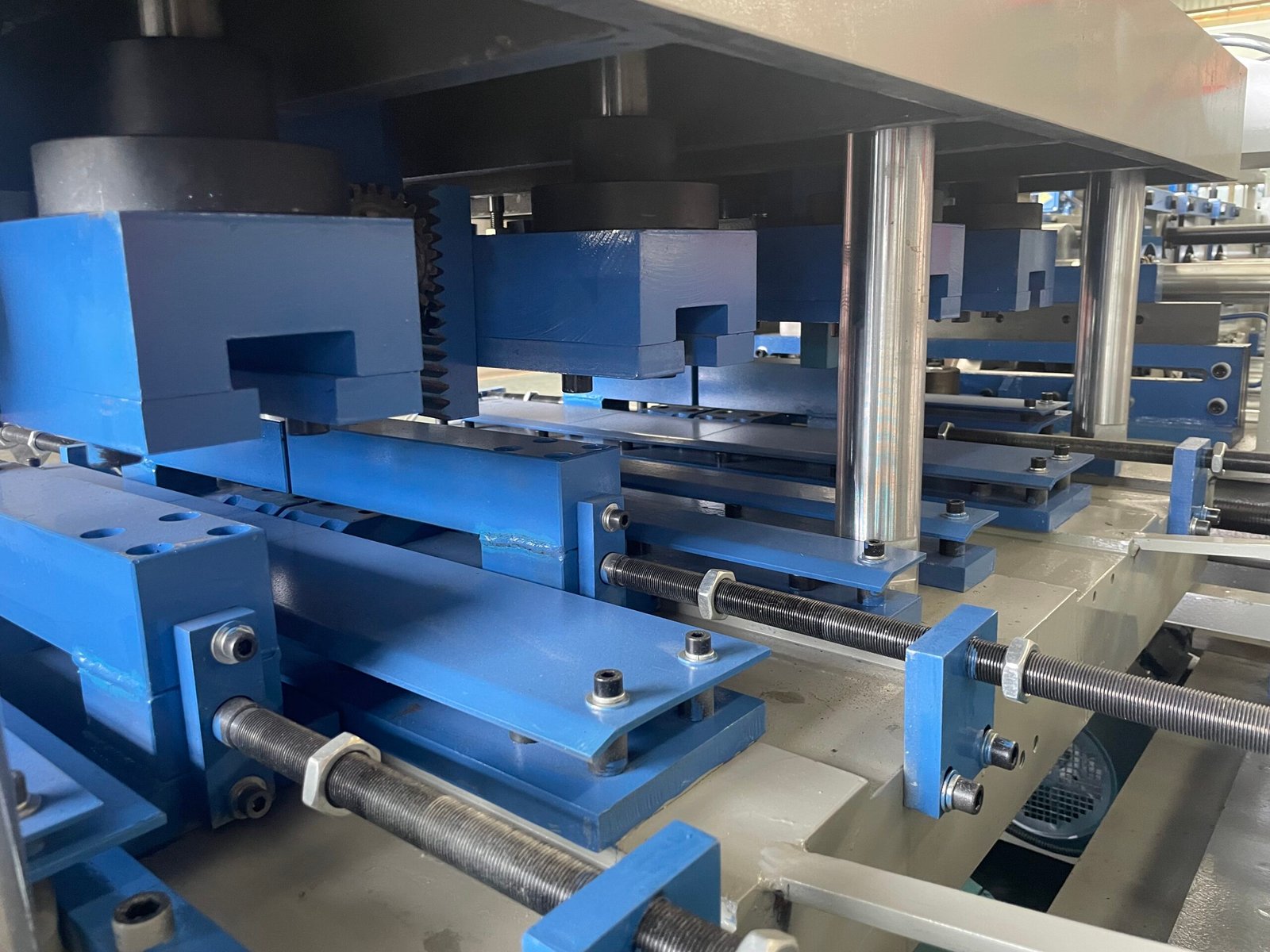

3. Pre – punching Apparatus

Perform punching on flat sheets. The PLC manages the punch quantity and horizontal location, while the vertical location is manually adjustable.

Web punching quantity & dimensions: customized according to customer needs

Flange punching quantity & dimensions: customized according to customer needs

The punching bar and punching die are easy to replace

4. Pre – cutting Equipment

It is applied to cut raw materials prior to roll forming.

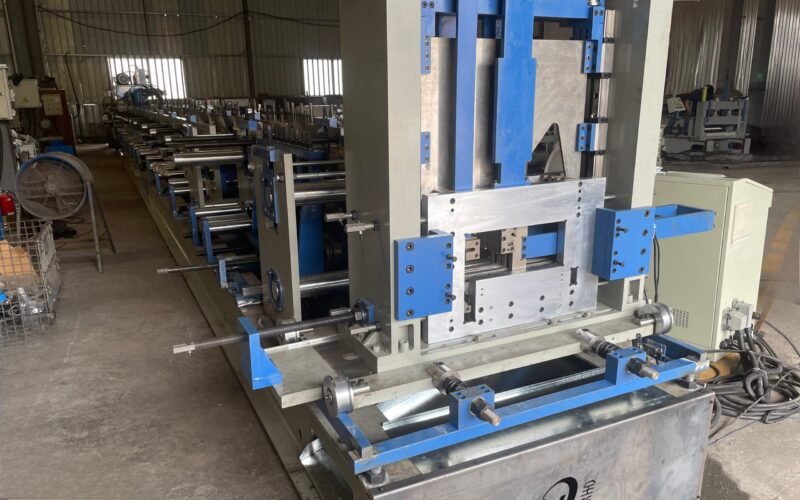

5.Main Roll Forming M/C
Drive Type: Chain – driven
Maximum Forming Speed: 30m/min
Rollers: Approximately 26 sets of rollers
Roller Material: Cr15 die steel;
Lower Roller Diameter: Around 360mm
Shaft: The shafts of the rollers are ground twice by a grinding machine to guarantee the precision of the final product. Main shaft diameter: ø95mm (subject to the final design)
Main Shaft Material: 40Cr
Size Change: Fully – automatic
Equipped with a fast C/Z interchange system
Fast C/Z interchange achievable in just 3 steps, within 5 – 15 minutes.

6. Hydraulic Cutting
Our innovative cutting system uses CZ integrated & adjustable molds. No need to change molds for different purlin sizes.

7.Product track —1 set

8. PLC Control System
Automated Control: Manages production quantity, punching length, and cutting length with precision.
Operational Safety: The machine is automatically paused during punching and cutting processes.

Measurement & Counting:
Automatic length measurement (precision: ±2mm).
Real-time production quantity tracking.

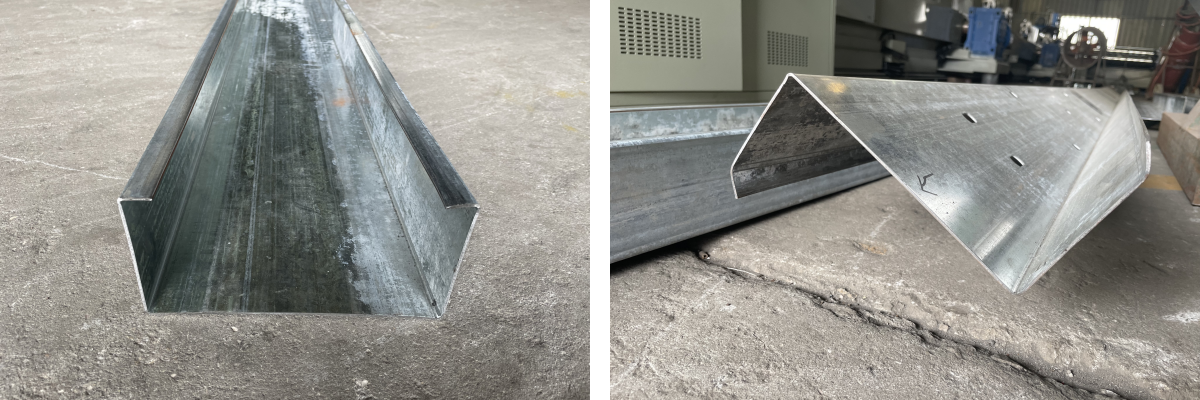

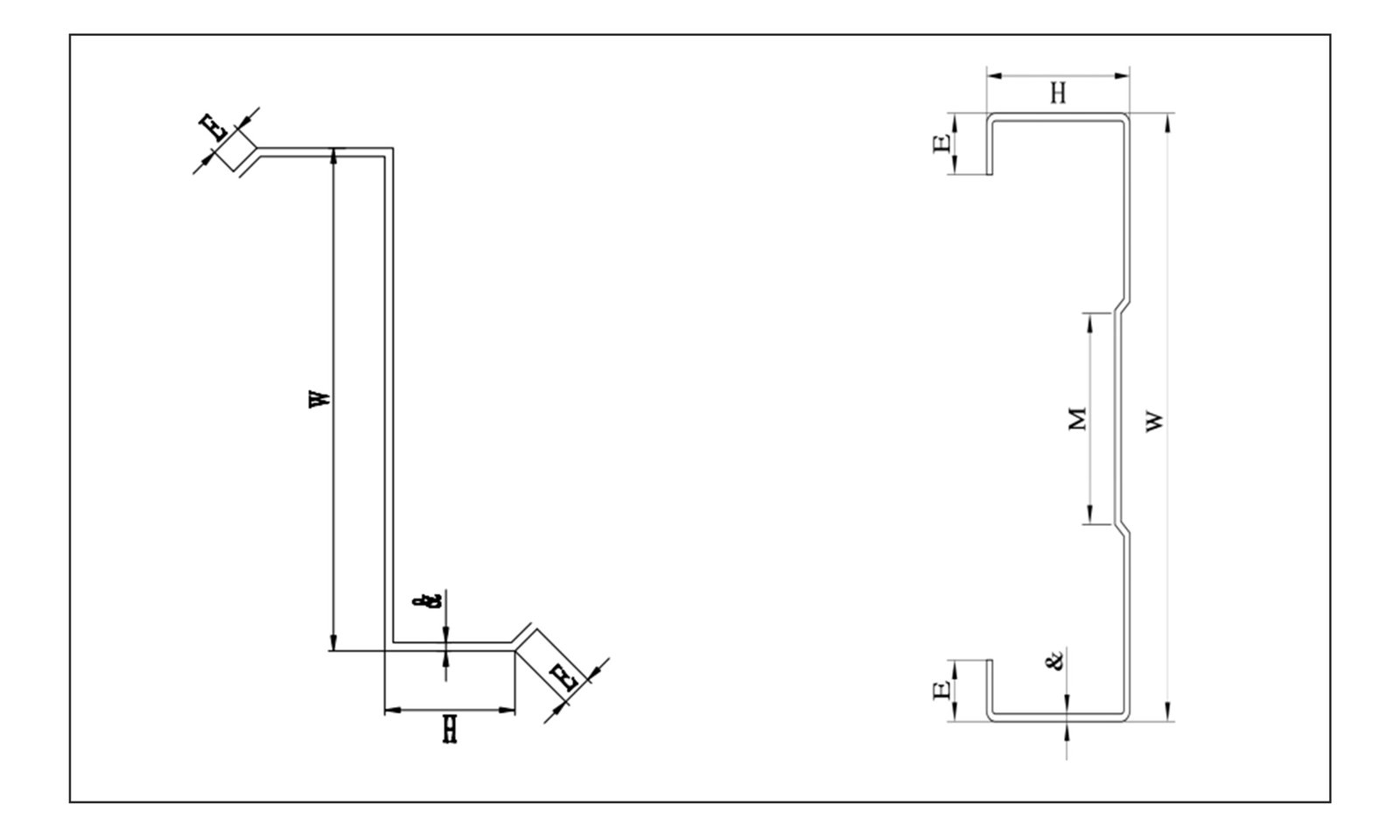

9.Product-CZ purlin

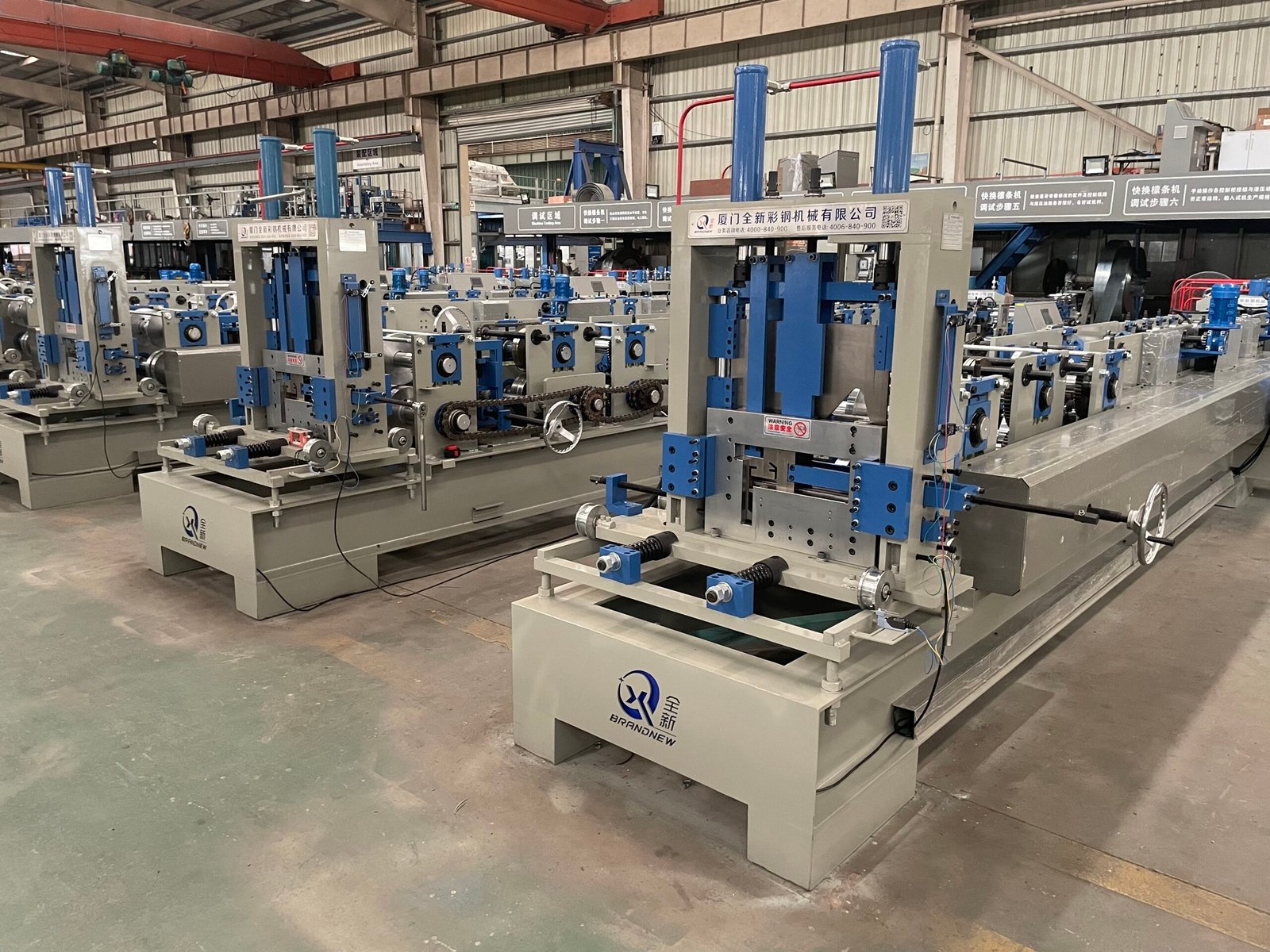

Our factory

Why Choose us：
– Boasting 28 years of expertise in manufacturing CZ purlin roll formers.
– Offering products with competitive prices and high – quality standards.
– Providing a 2 – year complimentary warranty.
– Ensuring a rapid response in after – sales service.
– Capable of automatically adjusting web size from 100mm to 300mm within 5 minutes.
– Open to customization according to clients’ specific needs.
– Featuring user – friendly operation and straightforward maintenance.
– Having self – developed post cutters, where a single blade can cut all sizes of final products.
