C&Z Purlin Roll Forming Machine
Beenew Machinery’s C&Z purlin roll forming machine is engineered exclusively for manufacturing C-shaped and Z-shaped channel purlins in a wide range of dimensions.
The roll forming dies are precisely machined by high-precision CNC equipment, which guarantees superior product quality and extended die service life. As we always uphold, quality and service are the core tenets of our machinery manufacturing.
Every component of the machine is crafted with meticulous precision by seasoned professionals, paired with top-tier roll forming dies. You can therefore rest assured of the machine’s exceptional build quality with no concerns over operational reliability.

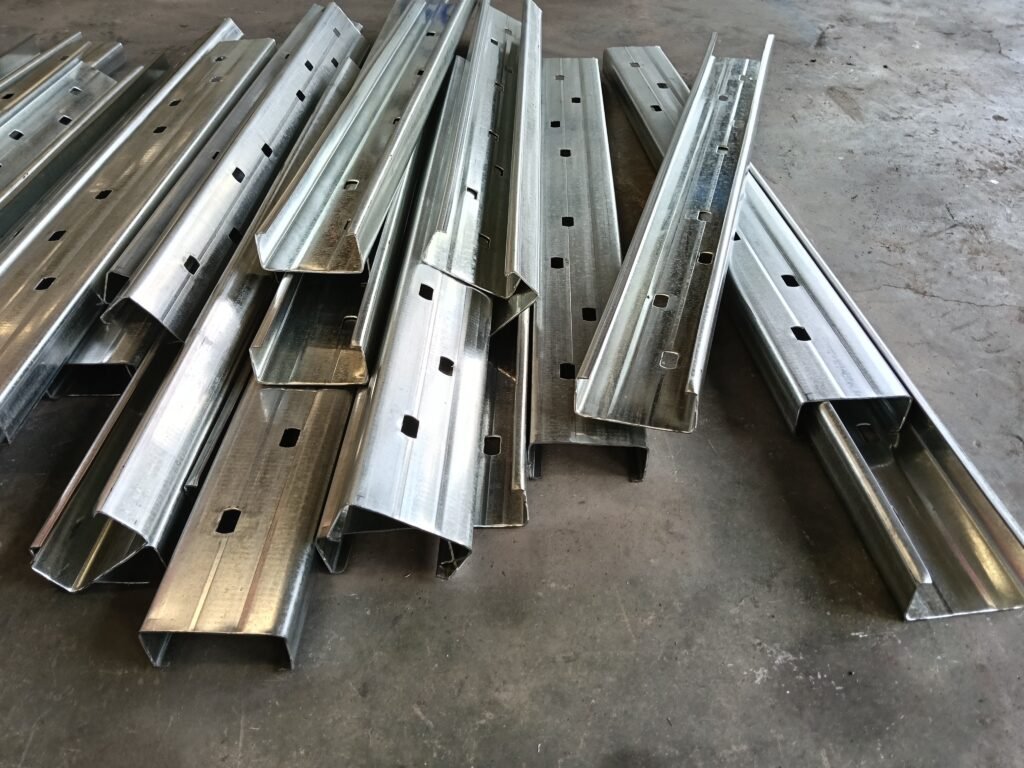

This versatile equipment is suitable for producing standard C-purlins with widths ranging from 80mm to 300mm and Z-purlins from 100mm to 300mm, accommodating raw material thicknesses between 1.0mm and 3.0mm. It is equipped with three punching units: two dedicated to bottom punching and one for side punching operations.
Purlin Classification
Purlins are categorized by their cross-sectional profiles: channel-shaped purlins with or without reinforcing ribs are defined as C-purlins; those without ribs are also referred to as U-purlins. Meanwhile, purlins with a point-symmetric Z-like profile are known as Z-purlins.
Zhongyuan Machinery specializes in the production of C-purlin roll forming machines, Z-purlin roll forming machines, and the combined C&Z purlin roll forming machine. We also offer customized design and manufacturing services for special-profile purlins to meet unique project requirements.
C-channel Purlin Roll Forming Machine
Steelmama brand C-purlin roll forming machines are designed to produce C-purlins in sizes ranging from 3 inches to 12 inches. We also supply CU-type and CG-type purlin forming machines, available with or without punching functions. Simply inform us of your specific requirements, and we will tailor the optimal roll forming solution for you.

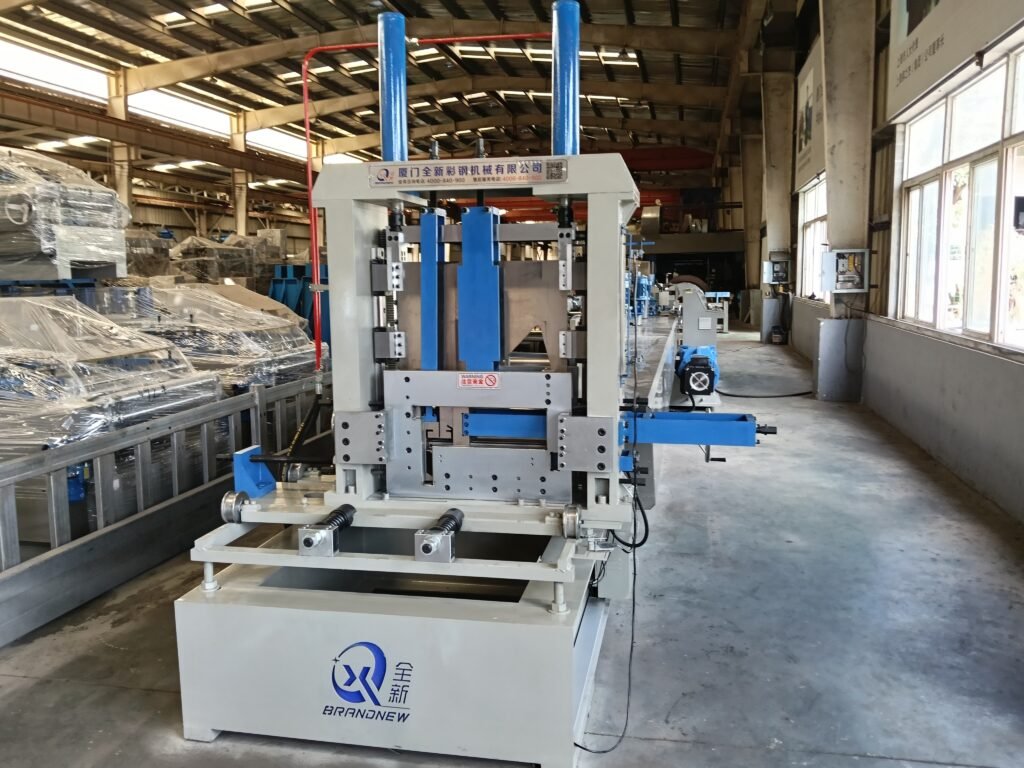

The C&Z purlin roll forming machine integrates a 5-ton manual decoiler, a forming system with optional punching units, a post-cutting device, a discharge table, and a PLC control system.
Switching between C-shaped and Z-shaped profiles is effortlessly achieved by rotating the handwheel 180 degrees to adjust the relative positions of the upper and lower roller sets. For changing purlin dimensions, the bottom pressure control system enables quick adjustment of the entire production line’s rollers, ensuring efficient and time-saving operation.
Competitive Advantages of Beenew Machinery Purlin Roll Forming Machines
- Precision Small-profile Z-purlins: Our machines excel at producing Z-purlins with small dimensions (≤120mm) that are perfectly straight and free from distortion—a common issue plaguing products from many other manufacturers.
- Heavy-duty Stable Structure: Equipped with 75mm solid shafts and an H-beam base frame, the machine withstands prolonged continuous operation without deformation, ensuring consistent high-quality purlin production over time.
- High-precision Roll Dies: The rollers are made of premium GCR15 steel and machined via CNC processes, ensuring unparalleled roller accuracy that directly translates to precise final purlin dimensions.
- Stress-relieved Cutting Frame: The cutting frame undergoes professional stress relief treatment, preventing deformation during long-term use and ensuring smooth, uninterrupted processing of C-purlins.
- Reliable Control System: Adopting either Mitsubishi or Siemens control systems, the equipment delivers stable performance and user-friendly operation.
- High Production Efficiency: The forming speed reaches 20–30 meters per minute, significantly boosting production throughput.
- Robust Machine Build: The C&Z purlin roll forming machine with punching units has a net weight of approximately 10 tons, reflecting its sturdy and durable construction.
Customization & Material Compatibility
Our purlin roll forming machines can process various materials, including pre-painted steel, galvanized steel, and hot-rolled black steel. All produced purlins meet the minimum yield strength requirement of 55 KSI.
Each production line can be configured with coil feeding equipment (including decoilers) and a variety of high-precision punching systems for accurate hole positioning on purlin webs and flanges. For enhanced operational convenience, we can also integrate an automatic roller gap adjustment function, which eliminates the need for manual top shaft adjustments when switching between different material thicknesses.
